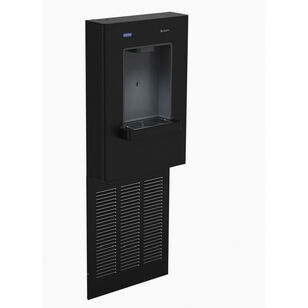

Sloan® DropSpot™ DRS100 Series 33820025 Bottle Filler, 8 gph Cooling, 115 V, 5.3 A, Black
Sloan® DropSpot™ DRS100 Series 33820025 Bottle Filler, 8 gph Cooling, 115 V, 5.3 A, Black
Sloan® Bottle Filler, DRS100 Series, 8 gph Cooling Capacity, 1.2 gpm Fill Rate, 115 V, 5.3 A, 60 Hz, Indoor Installation, Wall Mounting, 304 Stainless Steel Housing, Black Housing, 7.9 in Overall Length, 19 in Overall Width, 51.4 in Overall Depth, Additional Information: Galvannealed/Powder-Coated Finish, Without Remote Chiller
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,448.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSloan®
Additional InformationGalvannealed/Powder-Coated Finish, Without Remote Chiller
Amperage Rating5.3
Cooling Capacity8
Frequency Rating60
Housing Material304 Stainless Steel
IndustryPlumbing
Installation LocationIndoor
Mounting TypeWall
Overall Depth51.4
Overall Length7.9
Overall Width19
SeriesDRS100 Series
Voltage Rating115
Additional Information
ADA Compliant|ASME A112.18.1|CSA C22.2 File No. 120|IAPMO Listed|IGC 115/226|NSF 61/372|NSF/CAN 61|OBC Listed|QBC Listed|TAS Listed|UL 399
Features & Benefits
- Touch-free sensor operated bottle filler with 20 second max run time ADA compliant when installed properly Up to 1.2 gpm fill rate for quick fill Swing-open cabinet provides easy access to filter Laminar flow water supply Soft ambient white light to indicate filter status Backlit LED light that illuminates bottle filling area when sensor is activated Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking Rough-in matches other manufacturers' recommended rough-in locations for easy replacement Prop 65 compliant OPTIONAL: A water filter upgrade can be added to this unit (part number 33830001). Sold separately Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient Refrigerant R-134A
Documents
Marketing Information
Sloan's DropSpot™ On-wall Bottle Filler Unfiltered Refrigerated black powder coat. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be galvaneeled steel with black powder coat finish. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Cabinet door shall have swing-open mechanism, providing easy access for filter replacement.
Sloan® DropSpot™ DRS100 Series 33820025 Bottle Filler, 8 gph Cooling, 115 V, 5.3 A, Black
BrandSloan®
MFG #33820025
Keller #1435297
