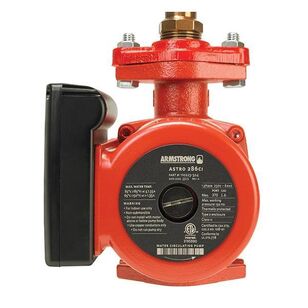

ARMSTRONG Astro 2 110223-324 3-Speed Circulator, 0 to 64 gpm, 370 W, 230 V, 1.6 A, 60 Hz, 150 psi Max Pressure
ARMSTRONG Astro 2 110223-324 3-Speed Circulator, 0 to 64 gpm, 370 W, 230 V, 1.6 A, 60 Hz, 150 psi Max Pressure
ARMSTRONG 3-Speed Circulator, Series: Astro 2, Model: Astro 286ci, 0 to 64 gpm Flow Rate, 42 ft Maximum Head, 370 W, 230 V, 1.6 A, 60 Hz, 150 psi Maximum Pressure, 1/2 in Connection, 2-Bolt Flange Connection, 1 ph, 230 deg F, Cast Iron, Painted, Red, 6.5 in H x 6.38 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandARMSTRONG
Amperage Rating1.6
ColorRed
Color/FinishPainted
Connection Size1/2
Connection Type2-Bolt Flange
Dimensions6.5 " H x 6.38 " W
FinishPainted
Flow Rate0 to 64
Frequency Rating60
IndustryPlumbing
MaterialCast Iron
Maximum Head42
Maximum Pressure150
ModelAstro 286ci
Phase1
Power Rating370
SeriesAstro 2
Temperature Rating230
Voltage Rating230
Additional Information
cETLus Listed|UL 778|CSA C22.2 No.108-01
Features & Benefits
- Adjustable performance - three field selectable speeds to cover a wide performance range Easy electrical connection - simple terminal strip for fast and easy wiring Three field selectable speeds allow replacement of a wide variety of fixed speed circulators Cross reference for most popular models affixed to packaging saves time when installing a replacement circulator
Documents
Marketing Information
The ARMSTRONG Astro two-circulators are designed for quiet operation and zero maintenance. In combination with cast iron volutes the Astro two-line is intended to circulate water or ethylene glycol solutions in closed hydronic or solar heating systems. The Astro 2 line is available in three volute materials for residential, small industrial and commercial applications.
