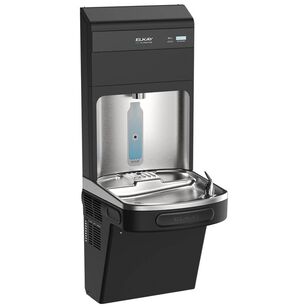

Elkay® LZS8WSBPRO Bottle Filling Station and Single Cooler, Filtered Filtration System, 1-Station, 1 gpm Fill Rate
Elkay® LZS8WSBPRO Bottle Filling Station and Single Cooler, Filtered Filtration System, 1-Station, 1 gpm Fill Rate
Elkay® Bottle Filling Station and Single Cooler, 115 V, 5 A, 60 Hz, Filtered Filtration System, Activation Method: Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar, 1 Stations, Flexi-Guard® Safety Bubbler Style, 8 gph Chilling, 1 gpm Fill Rate, R-134A Refrigerant, 80 deg F Water Temperature, Wall Mounting, Indoor, Stainless Steel, Black Stainless, 18-3/8 in Length, 19 in Width, 46-7/8 in Height, Additional Information: Pro Filtration™ Collection, Non-Refrigerated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,465.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandElkay®
Activation MethodElectronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar
ADA CompliantYes
Additional InformationPro Filtration Collection, Non-Refrigerated
Amperage Rating5
AntimicrobialAntimicrobial
Bottle Filler Depth19 "
Bottle Filler Height31-3/8 "
Bottle Filler OperationSensor
Bottle Filler Width18 "
Bubbler StyleFlexi-Guard Safety Bubbler
Chilling Capacity8
Compatible Filter Manufacturer Part NumberFL10; FL6; FLP4
Cooling Capacity8 gph
Country Of OriginUSA
Drain Outside Diameter1-1/4 "
EnvironmentIndoor
FeaturesAutomatic Filter Status Reset Energy Savings Filtered Green Ticker Hands Free Laminar Flow Real Drain Visual Filter Monitor Alcove Light Automatic Filter Flush Stainless Steel Alcove Pro Filtration System Top Mount Quick Filter Change
Fill Rate1
Filter AccessTop Panel Access
Filter Status IndicatorFilter Status Indicator Included
Filtration SystemFiltered
FinishBlack Stainless
Fountain OperationSensor
Frequency Rating60
Height46-7/8
Housing FinishStainless
Housing MaterialStainless Steel
IncludesBottle Filler; Ultra Capacity Filter; Water Cooler
Includes Water FilterWater Filter Included
Indoor/OutdoorIndoor
IndustryPlumbing
Inlet Tube Outside Diameter3/8 "
Length18-3/8
Manufacturer Warranty Length1 yr (Date of Install); 18 mo (From Date of Shipment)
MaterialStainless Steel
Max. Flow Rate1.1 gpm
Mounting Hole Diameter7/16 "
Mounting LocationWall Mount
Mounting TypeWall
Number of Dispensers1
Number of Mounting Holes9
Number Of Stations1
Operating Voltage115V
Overall Depth18-3/8 ""
Overall Height46-7/8 "
Overall Width19 ""
Power SourceElectric Hard Wired
Product DescriptionThese on-wall single drinking fountains with bottle fillers dispense water from either a built-" bottle filler or bubbler. Bubblers are sometimes referred to as a spout or nozzle.
Refrigerant TypeR-134A
RefrigerationRefrigerated
StandardsADA and ICC A117.1; ASME A112.19.3/CSA B45.4; CAN/CSA C22.2 No. 120; FCC and ISED; NSF 372 (Lead Free); NSF 401; NSF 42; NSF 53; NSF 61; UL 399
Station TypeBottle Filling Dispenser
Temperature AdjustmentFactory Set but Adjustable
Vandal ResistantNot Vandal Resistant
Voltage Rating115
Water Temperature Rating80
Width19
Shipping Dimensions (L x W x H)24.68" x 19.81" x 31.63"
Additional Information
ADA Compliant|ASME A112.19.3|CAN/CSA C22.2 No. 120|CSA B45.4|FCC Approved|ICC A117.1|NSF/ANSI 42/53/61/372/401|UL 399
Features & Benefits
- Certified Filtration: Certified to NSF/ANSI 42, 53 & 401 to reduce lead, total PFAS, microplastics, copper, asbestos, and more Top-Access Filter Replacement: Change filters in seconds from the top- minimizing maintenance time and system disruption High Capacity Filtration: Delivers filter life capacity that exceeds industry standards, with options up to 20,000 gallons- extending uptime and reducing filter changeouts Smart Connected: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights Automated Filter Startup: Recognizes new filters, automatically resets status lights, and flushes the waterway- reducing installation time and labor Filter Life Monitoring: Blue LCD display shows remaining filter capacity at a glance- helping teams stay ahead of maintenance and avoid unplanned downtime
Documents
Marketing Information
Get more uptime, simplified maintenance, and reliable performance with Elkay® Pro Filtration™- the next generation from the brand you trust. This midnight black bottle filling station delivers dependable performance for everyday use. With an advanced filtration system and innovative top-access design, maintaining filtered drinking water is easier than ever. Filters can be changed in seconds, minimizing disruption in high-traffic environments. Compatible with Elkay Pro Filtration filters, these systems offer high-capacity filtration with options up to 20,000 gallons and reduce contaminants including total PFAS, lead, microplastics, copper, asbestos, and more. Enhance performance further with an optional Stage 1 pre-sediment filter to help reduce buildup from municipal water sources.
Elkay® LZS8WSBPRO Bottle Filling Station and Single Cooler, Filtered Filtration System, 1-Station, 1 gpm Fill Rate
BrandElkay®
MFG #LZS8WSBPRO
Keller #1435685
My Part ##
Last Ordered#
$3,465.00 / ea
