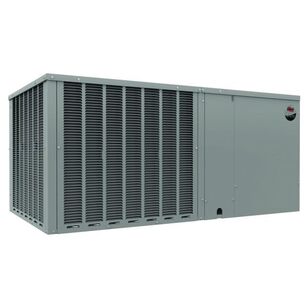

RUUD® Endeavor® Line Achiever® Series RACBYB042AJT000NA Packaged Air Conditioner, 2 to 5 ton Nominal, 208/230 V, 30 A
RUUD® Endeavor® Line Achiever® Series RACBYB042AJT000NA Packaged Air Conditioner, 2 to 5 ton Nominal, 208/230 V, 30 A
RUUD® Packaged Air Conditioner, Series: Line Achiever® Series, Model: RACBYB, 2 to 5 ton Nominal Capacity, 42000 Btu/hr Cooling BTU Rating, 208/230 V, 30 A, 12.31 kW, 3/4 hp Rating, 1050 rpm Rotational Speed, 60 Hz, 1 ph, Scroll Compressor, Horizontal Configuration, 1400/1458 cfm CFM Rating, 10.6 EER, 13.4 SEER, 1 Stage, R-454B, 81 dB, Direct Drive, Constant Torque Motor, 12.36 sq-ft Coil Rating, 1 in Connection, 24 x 24 x 1 in Filter, 45 A Fuse, Non-Communicating Control, 29-1/8 in H x 59 in W x 33 in D, Additional Information: Without Electric Heat
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14,575.04 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationWithout Electric Heat
Amperage Rating30
CFM Rating1400/1458
Coil Rating12.36
Compressor TypeScroll
ConfigurationHorizontal
Connection Size1
Control TypeNon-Communicating
Cooling BTU Rating42000
Dimensions29-1/8 " H x 59 " W x 33 " D
Drive TypeDirect
EER Rating10.6
Filter Size24 x 24 x 1
Frequency Rating60
Fuse Rating45
HP Rating3/4
IndustryHVAC
ModelRACBYB
Motor TypeConstant Torque
Nominal Capacity2 to 5
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed1050
SEER Rating13.4
SeriesLine Achiever Series
Sound Level81
Voltage Rating208/230
Wattage12.31
Additional Information
AHRI 210/240/270|cULus Listed
Features & Benefits
- Peace-Of-Mind Performance: Relax, you're covered by one of the best warranties in the industry - 10 Year Conditional Parts in residential applications. Small Spaces Approved: If outdoor space constraints are part of the equation, let this dedicated horizontal packaged air conditioner be your solution. With a compact footprint and optional flush-to-the-wall installation, it's perfect for times with zero lot line requirements, sloped roof placement, manufactured homes and small spaces. Durable Curb Appeal: The steel cabinet with a louvered coil guard provides excellent internal protection, while the overall modern cabinet aesthetics, including the powder coat paint system, allow your unit to put its best face forward for years to come. Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78% lower GWP than previous-generation refrigerants-with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.
Documents
RUUD® Endeavor® Line Achiever® Series RACBYB042AJT000NA Packaged Air Conditioner, 2 to 5 ton Nominal, 208/230 V, 30 A
BrandRheem®
MFG #RACBYB042AJT000NA
Keller #1437494
My Part ##
Last Ordered#
$14,575.04 / ea
