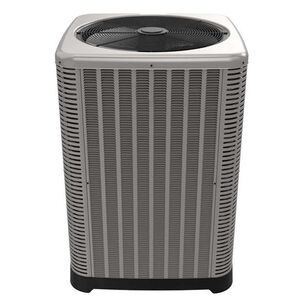

RUUD® RACY2119CAZ Commercial Split Air Conditioner, 10 ton, 120000 Btu/hr Cooling, 208/230 V, 120000 Btu/hr
RUUD® RACY2119CAZ Commercial Split Air Conditioner, 10 ton, 120000 Btu/hr Cooling, 208/230 V, 120000 Btu/hr
RUUD® Commercial Split Air Conditioner, RACY Achiever® Series, 10 ton Nominal Capacity, 120000 Btu/hr Cooling Capacity, 120000 Btu/hr BTU Rating, 208/230 V Voltage Rating, 39 A Amperage Rating, 35 kW Wattage, 1/2 hp Rating, 1100 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 2-Stage Cooling Configuration, 4000 cfm Rating, 11.2 EER Rating, 2 Number of Stages, R-454B Refrigerant Type, 5/8 in Liquid Line Size, 1-5/8 in Suction Line Size, 86 dBA Sound Level, Rooftop, Slab Mounting Type, 45 to 60 A Fuse Rating, 29.6 sq-ft Inner, 31.8 sq-ft Outer Face Area, ECM Motor Type, 22 Fins per Inch, 35-3/4 in L x 35-3/4 in W x 51 in H Dimensions, RHCYA Commercial Split System Condensing Units Suitable For Use With
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$23,296.25 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Amperage Rating39
BTU Rating120000
CFM Rating4000
Compressor TypeScroll
Configuration2-Stage Cooling
Cooling Capacity120000
Dimensions35-3/4 " L x 35-3/4 " W x 51 " H
EER Rating11.2
Face Area29.6 sq-' Inner, 31.8 sq-' Outer
Fins per Inch22
Frequency Rating60
Fuse Rating45 to 60
HP Rating1/2
IndustryHVAC
Liquid Line Size5/8
Motor TypeECM
Mounting TypeRooftop, Slab
Nominal Capacity10
Number of Stages2
Phase3
Refrigerant TypeR-454B
Rotational Speed1100
SeriesRACY Achiever Series
Sound Level86
Suction Line Size1-5/8
Suitable For Use WithRHCYA Commercial Split System Condensing Units
Voltage Rating208/230
Wattage35
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- Factory charged with nitrogen for shipping Ready to be charged with R-454B Low GWP refrigerant in the field after installation Wired and run tested Scroll compressors with internal line break overload and high pressure protection High and Low Pressure switches provide additional system protection Forkable base rails on 10 (two fan), 12.5, 15, and 20 Ton for easy handling and lifting Cooling operation up to 125degF ambient Tube and Fin condenser and evaporator coils Single-piece control door 6.5, 7.5 and 10 Ton includes a single 2-Stage scroll compressor 12.5, 15, and 20 Ton includes a tandem scroll compressor configuration
Marketing Information
The RACY Series commercial split models are engineered for reliable operation and consistent cooling performance. Designed for easy maintenance and serviceability, all access panels can be opened or removed without affecting the structural strength of the unit, facilitating routine maintenance tasks such as coil cleaning or component inspection. Stamped louvered panels offer 100% protection for the condenser coil, adding to unit performance and reliability.
