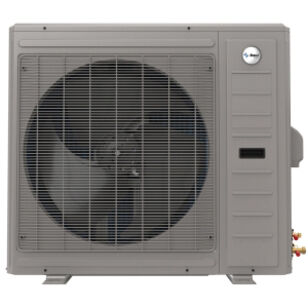

RUUD® Endeavor® Line Achiever® Plus Series RD16AY RD16AY24AJVCA Side-Discharge Heat Pump, 208/230 V, 15 A, 1/9 hp
RUUD® Endeavor® Line Achiever® Plus Series RD16AY RD16AY24AJVCA Side-Discharge Heat Pump, 208/230 V, 15 A, 1/9 hp
RUUD® Endeavor® Line Side-Discharge Heat Pump, Achiever® Plus Series, Model: RD16AY, 208/230 V, 15 A, 7.03 kW, 1/9 hp, 60 Hz, 1 ph, 24000 Btu/hr Heating, 24000 Btu/hr Cooling, 2350 cfm Heating CFM Rating, 2350 cfm Cooling CFM Rating, PlusOne® Twin Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 25 A Fuse Rating, Inverter Drive, Tonnage: 2 ton, 59 dBA Cooling Sound Level, -22 to 70 deg F Heating Operating Temperature, 50 to 125 deg F Cooling Operating Temperature, 40.4 in Overall Length, 19.8 in Overall Width, 31.8 in Overall Height, Additional Information: 10.5 EER2, 8.5 HSPF2, Communicating/EcoNet®/Bluetooth® Control
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,418.75 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional Information10.5 EER2, 8.5 HSPF2, Communicating/EcoNet/Bluetooth Control
Amperage Rating15
Compressor TypePlusOne Twin Rotary
Cooling BTU Rating24000
Cooling CFM Rating2350
Cooling Operating Temperature50 to 125
Cooling Sound Level59
Drive TypeInverter
Frequency Rating60
Fuse Rating25
Heating BTU Rating24000
Heating CFM Rating2350
Heating Operating Temperature-22 to 70
HP Rating1/9
IndustryHVAC
Liquid Line Size3/8
ModelRD16AY
Overall Height31.8
Overall Length40.4
Overall Width19.8
Phase1
Power Rating7.03
Refrigerant TypeR-454B
SeriesAchiever Plus Series
Suction Line Size3/4
Tonnage2
Voltage Rating208/230
Warranty10 Year Parts
Additional Information
AHRI 270-08|cETLus Intertek Listed|ENERGY STAR Certified
Features & Benefits
- Peace-Of-Mind Performance: Relax, you're covered by one of the best warranties in the industry - 10 Year Conditional Parts when installed as a heat pump only or as part of a system Energy Savings: Just like a vehicle's MPG rating, the higher the SEER2, EER2 and HSPF2 rating (Seasonal Energy Efficiency Ratio / Energy Efficiency Ratio / Heating Seasonal Performance Factor), the higher the efficiency of your heat pump - resulting in more energy savings. Keep in mind, other factors such as system matching, sizing, ductwork and installation also impact the overall efficiency. By working with a properly trained contractor, you can be confident that you are choosing the best heating and cooling system for your home's comfort - and your finances Maximum Comfort: Inverter driven, variable spped, twin rotary compressor technology features fully variable cooling and heating operation between 45% and 100% of capacity to continously meet your ever-changing needs. You'll enjoy exact temperature and advanced humidity control that combine to exceed your optimal comfort expectations Reduced Emissions: Households generate 72% of greenhouse gas emissions, so switching to a heat pump can make a big difference for the environment - today Less Environmental Impact: The 7mm condenser coil reduces refrigerant requirements up to 15%. This lowers the amount of greenhouse gases emitted while contributing ot Rheem's sustainability goal of a 50% reduction in our greenhouse gas footprint. A win for all of us Durable Curb Appeal: Steel panels provide excellent support and protection to internal components, while the overall modeern cabinet aesthetics, including the powder coat paint system and rust resistant screws, allow your unit to put its best face forward for years to come Quiet Operation: Efficient home comfort shouldn't be noisy. That's why our heat pumps are designed with acoustics in mind. Sound-dampening features such as refrigerant tubing design, fan blade approach and innovative compressor and drive technologies ensure that as efficiency goes up, sound levels stay low - as low as 50 dBA
Marketing Information
Rheem® Side-Discharge Heat Pump, Achiever® Plus Series, Model: RD16AY, 208/230 V, 15 A, 7.03 kW, 1/9 hp, 60 Hz, 1 ph Phase, 24000 Btu/hr Heating, 24000 Btu/hr Cooling, 2350 cfm Heating CFM Rating, 2350 cfm Cooling CFM Rating, PlusOne® Twin Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 25 A Fuse Rating, Inverter Drive, Tonnage: 2 ton, 59 dBA Cooling Sound Level, -22 to 70 deg F Heating Operating Temperature, 50 to 125 deg F Cooling Operating Temperature, 40.4 in Overall Length, 19.8 in Overall Width, 31.8 in Overall Height, Additional Information: 10.5 EER2, 8.5 HSPF2, Communicating/EcoNet®/Bluetooth® Control
