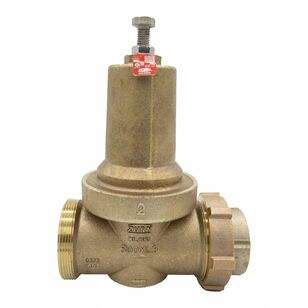

WILKINS Pressure Reducing Valve: FNPT x FNPT, 1 in Pipe Size, Cast Bronze, 25 psi to 75 psi
WILKINS Pressure Reducing Valve: FNPT x FNPT, 1 in Pipe Size, Cast Bronze, 25 psi to 75 psi
Standard-capacity water pressure regulators control incoming water pressure to set levels to protect plumbing systems and reduce water consumption in light commercial and residential applications. Their integral strainer provides easy accessibility for inline servicing in tight spaces.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,592.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
ApplicationCommercial Use; Residential Use
Body MaterialCast Bronze
Coating/LiningNSF Listed Fusion Bonded Epoxy Lining and Coating
ConnectionsFNPT x FNPT
Country Of OriginChina
Factory Set Pressure50 psi
For MediaWater
Includes StrainerStrainer Included
IndustryPlumbing
Inlet Connection Size1 "
Low Lead ComplianceLow-Lead Compliant
Max. Continuous Flow Rate42.3 gpm
Max. Operating Temperature140 °F
NSF Certifications for Food and Drinking WaterNSF 61; NSF 372
Operating Pressure Range15 psi to 400 psi
Outlet Connection Size1 "
Overall Height6-11/16 "
Overall Width2-3/4 "
Port DesignFull Port
Pressure Adjustment Range25 psi to 75 psi
Product DescriptionStandard-capacity water pressure regulators control incoming water pressure to set levels to protect plumbing systems and reduce water consumption " light commercial and residential applications. Their integral strainer provides easy accessibility for inl
StandardsASSE 1003; CSA B356; cUPC
Union TypeSingle
Shipping Dimensions (L x W x H)6.44" x 3.31" x 6.81"
Features & Benefits
- ASSE listed, cUPC listed, CSA certified B356
- Bronze wye type strainer on inlet protects downstream components with heavy-duty, stainless steel screen
- Delivers best-in-class flow performance of all direct-acting pressure reducing valves allowing for value engineered design optimization
- Compact size supports installation versatility
- Highly durable, all-bronze body resists corrosion and provides easy access to cartridge internals
- Meets the requirements of NSF/ANSI/CAN 61
Documents
Marketing Information
This 1 In 500XL3 Pressure Reducing Valve handles high flow rates with industry-leading durability and premium materials for sustained efficiency. The 500XL3 is built to last with lead-free construction, an all-bronze body, stainless steel stem, and a Noryl thermoplastic cartridge. Designed to ease installation and maintenance, the 1-500XL3Y includes a single FNPT union tailpiece kit and a bronze wye (Y) strainer. This 1 In model is ideal for commercial plumbing systems and industrial water lines.
WILKINS Pressure Reducing Valve: FNPT x FNPT, 1 in Pipe Size, Cast Bronze, 25 psi to 75 psi
BrandZurn®
MFG #1-500XL3Y
Keller #1438994
My Part ##
Last Ordered#
$1,592.00 / ea
