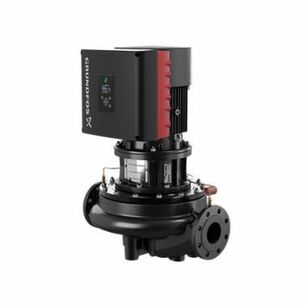

Grundfos TPE 2000 Series TPE 50-160/2 99430152 Circulator Pump, 66.9 gpm, 200-240 V, 4.1 to 3.5 A, 60 Hz, 3450 rpm Motor
Grundfos TPE 2000 Series TPE 50-160/2 99430152 Circulator Pump, 66.9 gpm, 200-240 V, 4.1 to 3.5 A, 60 Hz, 3450 rpm Motor
Grundfos Circulator Pump, TPE 2000 Series, Model: TPE 50-160/2, 66.9 gpm Flow Rate, 78.74 ft Maximum Head, 200-240 V, 4.1 to 3.5 A, 60 Hz, 145.04 psi Maximum Pressure, 3450 rpm Motor Speed Rating, 1-1/2 hp, 2 in Connection, US Flanged Connection, 3.43 in Impeller Diameter, 3 ph Phase, 2 Poles, 5 to 284 deg F, IP55 Enclosure, Iron, 18.8 in H x 14 in W, Additional Information: F Insulation Class, 1-Stage, 56C Frame Size, 0.63 in Dia x 2.06 in L Shaft Size, 80B Motor, Stainless Steel Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationF Insulation Class, 1-Stage, 56C Frame Size, 0.63 " Dia x 2.06 " L Shaft Size, 80B Motor, Stainless Steel Impeller Material
Amperage Rating4.1 to 3.5
Connection Size2
Connection TypeUS Flanged
Dimensions18.8 " H x 14 " W
Enclosure TypeIP55
Flow Rate66.9
Frequency Rating60
HP Rating1-1/2
Impeller Diameter3.43
IndustryPlumbing
MaterialIron
Maximum Head78.74
Maximum Pressure145.04
ModelTPE 50-160/2
Motor Speed Rating3450
Number of Poles2
Phase3
SeriesTPE 2000 Series
Temperature Rating5 to 284
Voltage Rating200-240
Additional Information
AISI 304|ASTM Class 35|EN 1.4301/12756/GJL-250
Marketing Information
The pump is of the top pull out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via 125 psi ANSI flanges. The pump is fitted with a fan cooled, permanent magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The pump is fitted with a differential pressure sensor.
Grundfos TPE 2000 Series TPE 50-160/2 99430152 Circulator Pump, 66.9 gpm, 200-240 V, 4.1 to 3.5 A, 60 Hz, 3450 rpm Motor
BrandGrundfos
MFG #99430152
Keller #1439255
My Part ##
Last Ordered#
Call for Price / ea
