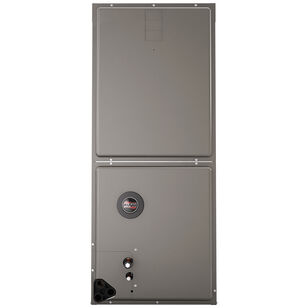

RUUD® Endeavor® Line RH1PY3617STANNJ Multi-Purpose Air Handler, 36000 Btu/hr, 36000 Btu/hr BTU, 1200 cfm, 208-240 V, 4 A
RUUD® Endeavor® Line RH1PY3617STANNJ Multi-Purpose Air Handler, 36000 Btu/hr, 36000 Btu/hr BTU, 1200 cfm, 208-240 V, 4 A
RUUD® Multi-Purpose Air Handler, RH1PY Model, 36000 Btu/hr Nominal Capacity, 36000 Btu/hr BTU Rating, 208-240 V Voltage Rating, 4 A Amperage Rating, 1/3 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1075 rpm Rotational Speed, 1200 cfm Rating, Upflow, Downflow, Horizontal Configuration, 13.4 to 15.2 SEER Rating, R-454B Refrigerant Type, 15 A Fuse Rating, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 20 x 16 in Filter Size, 1 Number of Stages, 2 Number of Speeds, PSC Motor Type, Steel, 42-1/2 in H x 17-1/2 in W x 21-11/16 in D Dimensions, TXV Metering Device, Non-Communicating Control Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,829.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationTXV Metering Device, Non-Communicating Control
Amperage Rating4
BTU Rating36000
CFM Rating1200
ConfigurationUpflow, Downflow, Horizontal
Dimensions42-1/2 " H x 17-1/2 " W x 21-11/16 " D
Filter Size20 x 16
Frequency Rating60
Fuse Rating15
HP Rating1/3
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRH1PY
Motor TypePSC
Nominal Capacity36000
Number of Speeds2
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed1075
SEER Rating13.4 to 15.2
Suction Line Size3/4
Voltage Rating208-240
Additional Information
AHRI Standard 193/210/240|cULus Listed
Features & Benefits
- Quiet Operation1: Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics Aluminum Indoor Coil Design: Are constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left and horizontal right applications, even in the smallest of spaces Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility Field-installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect Cabinet air leakage less than 2% at 1 inch H2O when tested in accordance with ASHRAE Standard 193 Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected
RUUD® Endeavor® Line RH1PY3617STANNJ Multi-Purpose Air Handler, 36000 Btu/hr, 36000 Btu/hr BTU, 1200 cfm, 208-240 V, 4 A
BrandRheem®
MFG #RH1PY3617STANNJ
Keller #1439488
My Part ##
Last Ordered#
$3,829.02 / ea
