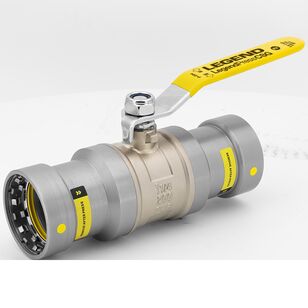

Legend Valve P-204G, LegendPressCSG Series 101-713P Full Port Ball Valve, 1/2 in, Press, Brass
Legend Valve P-204G, LegendPressCSG Series 101-713P Full Port Ball Valve, 1/2 in, Press, Brass
Legend Valve Full Port Ball Valve, P-204G, LegendPressCSG Series, 1/2 in Nominal, Press Connection, 125 psi Fuel Gas, 200 psi Air, Air, Fuel Gas Media, 4.14 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Stainless Steel Trim, PTFE Packing, Stainless Steel Handle, Stainless Steel Ball, PTFE Softgoods, Finish: Nickel Zinc-Plated, -40 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$102.73Â /Â ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Ball MaterialStainless Steel
Body MaterialBrass
Connection TypePress
FinishNickel Zinc-Plated
Handle MaterialStainless Steel
IndustryPlumbing
Inlet to Outlet Length4.14
MediaAir, Fuel Gas
Nominal Size1/2
Packing MaterialPTFE
Pressure Rating125 psi Fuel Gas, 200 psi Air
Seal MaterialPTFE
Seat MaterialPTFE
SeriesP-204G, LegendPressCSG Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating-40 to 180
Top to Inlet Center1-3/4
Trim MaterialStainless Steel
Additional Information
ANSI LC 4a/CSA 6.32|ASME B16.44/B16.33
Marketing Information
The P-204G is a full port ball valve designed for use with fuel, gas, oil, and compressed air. Its carbon steel connectors press into place, streamlining installation without sacrificing safety or reliability. The yellow o-rings are made of HNBR, a material with excellent heat and chemical resilience, low gas permeability, and minimal compression set. The P-204G's body and end adapters are plated with zinc-nickel alloy that protects the valve from corrosion to ensure a long service life.
Legend Valve P-204G, LegendPressCSG Series 101-713P Full Port Ball Valve, 1/2 in, Press, Brass
BrandLegend Valve
MFG #101-713P
Keller #1439709
