ADA Compliant|ASME A112.18.1|CSA C22.2 File No. 120|IAPMO Listed|IGC 115/226|NSF 61/372|NSF/CAN 61|OBC Listed|QBC Listed|TAS Listed|UL 399

• Touch-free sensor operated bottle filler with 20 second max run time, Up to 1.2 gpm fill rate for quick fill with laminar flow water ADA compliant when installed properly Backlit LED light that illuminates bottle filling area when sensor is activated, Soft ambient white light to indicate filter status Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as ounces of water dispensed for water consumption tracking Rough-in matches other manufacturers' recommended rough-in locations for easy replacement Antimicrobial bubbler, push bar, and other components Drop-down door assembly provides easy access to filter Patent pending push bar designed to be activated at any touch point and to provide easy access for cartridge replacement OPTIONAL: A water filter upgrade can be added to this unit (part number 33830002). Sold separately

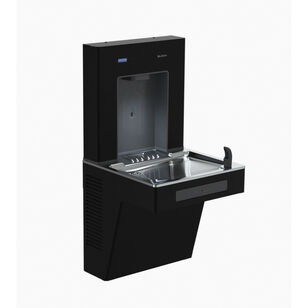

Sloan's DropSpot™ On-wall Bottle Filler with Single-level Cooler Unfiltered Refrigerated black powder coat. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Unit shall be activated from an antimicrobial front pushbar using less than 5 pounds of force. Bubbler shall deliver a 0.3 gpm flow. Basin and cabinet shall be constructed from galvannealed steel with black powder coat finish. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. Unit shall include a LED light that illuminates the bottle filling area. Bottle filler housing construction shall be galvannealed steel with black powder coat finish. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Push bar shall be activated by any touch point on the bar and shall be opened by Sloan access key.
