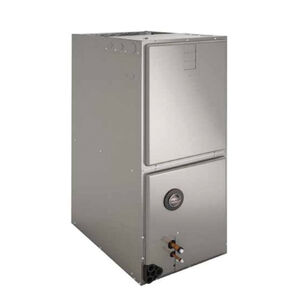

RUUD® Endeavor® Line RH1AY3617STANNJ Multi-Poise Air Handler, 36000 Btu/hr BTU, 1000 to 1200 cfm, 115 V, 3.4 A, 1/2 hp
RUUD® Endeavor® Line RH1AY3617STANNJ Multi-Poise Air Handler, 36000 Btu/hr BTU, 1000 to 1200 cfm, 115 V, 3.4 A, 1/2 hp
RUUD® Multi-Poise Air Handler, RH1AY Model, 36000 Btu/hr BTU Rating, 115 V Voltage Rating, 3.4 A Amperage Rating, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 300 to 1100 rpm Rotational Speed, 1000 to 1200 cfm Rating, Connection Type: Sweat, R-454B Refrigerant Type, 15 A Fuse Rating, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 16 x 20 in Filter Size, 1 Number of Stages, 4 Number of Speeds, Straight Cool Motor Type, Steel, 42-1/2 in H x 17-1/2 in W Dimensions, 13.8 to 14.3 SEER2 Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,829.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information13.8 to 14.3 SEER2
Amperage Rating3.4
BTU Rating36000
CFM Rating1000 to 1200
Connection TypeSweat
Dimensions42-1/2 " H x 17-1/2 " W
Filter Size16 x 20
Frequency Rating60
Fuse Rating15
HP Rating1/2
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRH1AY
Motor TypeStraight Cool
Number of Speeds4
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed300 to 1100
Suction Line Size3/4
Voltage Rating115
Additional Information
AHRI 210/240|ASHRAE 193|cULus Listed|EPA Listed|UL Listed
Features & Benefits
- Quiet Operation1 - Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics Aluminum Indoor Coil Design - Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant Versatile 4-Way Convertible Compact Design - Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces Rugged Steel, Compact Cabinet Construction - Designed for added strength and versatility Field Installed Auxiliary Heater Kits - Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect Less than 2% Cabinet Air Leakage at 1-inch H2O - When tested in accordance with ASHRAE Standard 193 Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, ependable comfort PlusOne® Refrigerant Detection System™3 - An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
