NIBCO PC641-2-/2 CU FLANGE
NIBCO PC641-2-/2 CU FLANGE
NIBCO® Press System® Companion Flange, PC641 Series, Flange Fitting, 2-1/2 in Connection Size 1, Connection Type 1: Press, 2-1/2 in Connection Size 2, Connection Type 2: Flanged, Press|Flanged Connection, Copper/Steel, Material Construction: Steel/Wrot Copper, 200 psi, -20 to 250 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$441.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Connection Size 12-1/2
Connection Size 22-1/2
Connection TypePress|Flanged
Connection Type 1Press
Connection Type 2Flanged
Fitting TypeFlange
IndustryPlumbing
MaterialCopper/Steel
Material ConstructionSteel/Wrot Copper
Pressure Rating200
SeriesPC641 Series
Temperature Rating-20 to 250
Shipping Dimensions (L x W x H)8" x 8" x 3.75"
Additional Information
ASME B16.51|ASTM A515|ASTM B88|CSA/MSE 13/PS-117|UPC Certified
Features & Benefits
- Operating pressure 200 psi cwp. Select configurations to 300 psi cwp. Temperature range -20degF to 250degF Lead-free Dezincification resistant Flange ring - steel plate meeting minimum tensile requirements of Grade 60 per ASTM A515 Copper press flange adapter - ASTM B88 C12200 copper Complies with ASME B16/51 Performance Third party certified to UPC Third party certified to the performance requirements of CSA MSE 13 and PS-117
Documents
Marketing Information

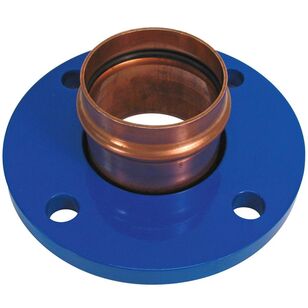

The NIBCO® Press System® companion flange features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The companion flange has a copper press connection and steel flanged end connection. The fitting provides a method for adapting a press connection to a flange connection.
NIBCO PC641-2-/2 CU FLANGE
BrandNIBCO®
MFG #9145506PC
