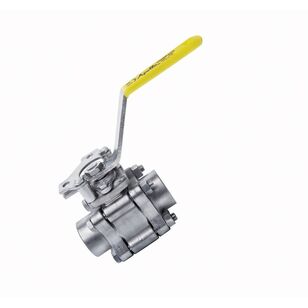

Apollo® 86B-100 Series 86B-108-24 Ball Valve, 2 in, NPT, Stainless Steel, 250 psig
Apollo® 86B-100 Series 86B-108-24 Ball Valve, 2 in, NPT, Stainless Steel, 250 psig
Apollo® Ball Valve, 86B-100 Series, 2 in Nominal, NPT Connection, Full Port, 250 psig, Pressure Class: 600 lb, Gas, Water Media, 2 in Orifice, 5.86 in Inlet to Outlet Length, 5.47 in Top to Inlet Center, 2 Positions, Lever Handle Operator, 376 Cv Flow Coefficient (Cv), Material Standard: ASTM A193-B8M3, ASTM A194-8, ASTM A276, ASTM A351 CF3M, ASTM A351 Grade CF8M, Stainless Steel Body, 316 Stainless Steel Stem, Stainless Steel Trim, Graphite Packing, Stainless Steel Handle, 316 Stainless Steel Ball, RPTFE Softgoods, Lead-Free, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,058.16 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Ball Material316 Stainless Steel
Body MaterialStainless Steel
Connection TypeNPT
Domestic/ImportDomestic
Flow Coefficient (Cv)376
Handle MaterialStainless Steel
IndustryPlumbing
Inlet to Outlet Length5.86
Lead-FreeYes
Material StandardASTM A193-B8M3, ASTM A194-8, ASTM A276, ASTM A351 CF3M, ASTM A351 Grade CF8M
MediaGas, Water
Nominal Size2
Number of Positions2
Operator TypeLever Handle
Orifice Size2
Packing MaterialGraphite
Port TypeFull
Pressure Class600
Pressure Rating250
Series86B-100 Series
Softgoods MaterialRPTFE
Stem Material316 Stainless Steel
Top to Inlet Center5.47
Trim MaterialStainless Steel
Additional Information
ASME B16.34|ASME B1.20.1|CGA 3.16-M88 (2014)|NACE MR0175 (2000)|MR0103 (2012), API 608|CSA B51|UPC Listed
Features & Benefits
- Three piece construction with enclosed fasteners Stainless steel trim and hardware Swing out center section Pressure balanced solid ball Compression controlled spiral wound gaskets Anti-blowout one piece bottom entry stem Statically grounded ball, stem and body Two position locking Adjustable multi-piece PTFE V-style packing Fully machined ISO 5211 mounting Cast bosses on the center section and end caps for bleed and drain ports
Documents
Marketing Information
The 86B-100 Stainless Steel 3 Piece Full Port Ball Valve excels in both durability and functionality with its robust 3-piece construction with enclosed fasteners. The full port design alongside the swing-out center section allows for efficient fluid flow. Safety and reliability are prioritized with features such as pressure balanced solid ball, anti-blowout one-piece bottom entry stem, and compression controlled spiral wound gaskets. , 3-piece construction w/ enclosed fasteners, full port, stainless steel trim and hardware, swing-out center section, pressure balanced solid ball, compression controlled spiral wound gaskets, anti-blowout one piece bottom entry stem, statically grounded ball, stem, and body, two-position locking, adjustable multi-piece PTFE ''''V'''' style packing, fully machined ISO5211 mounting, cast bosses on the center-section and end caps for bleed and drain ports, fire safe to API607 (requires -24 suffix), vacuum service to 29 in of Hg., CE Marking, 1-1/4'''' and larger (add ''''-CE'''' suffix), 250 psi saturated steam, CGA 3.16-M88(2014)
