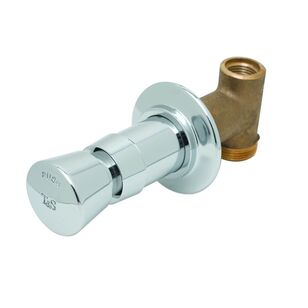

T&S B-1029-UCP Concealed Straight Valve, FNPT End, 20 to 125 psi, Brass Body, Pushbutton Handle Actuator
T&S B-1029-UCP Concealed Straight Valve, FNPT End, 20 to 125 psi, Brass Body, Pushbutton Handle Actuator
T&S Concealed Straight Valve, 2.9 gpm Flow Rate, 1/2 in Connection, FNPT End Style, Pushbutton Handle Actuator, 20 to 125 psi, 40 to 140 deg F, Brass Body, 2-3/4 in Width, 2-1/2 in Height, Additional Information: Wall-Mount
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$458.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandT&S Brass
Actuator TypePushbutton Handle
Additional InformationWall-Mount
Body MaterialBrass
Connection Size1/2
Connection TypeFNPT
End StyleFNPT
Flow Rate2.9
Handle MaterialMetal
Height2-1/2
IndustryPlumbing
Pressure Rating20 to 125
Temperature Rating40 to 140
Weight2.26
Width2-3/4
Shipping Dimensions (L x W x H)10" x 4" x 11"
Additional Information
ASME A112.18.1|Buy American Act Compliant|CSA B125.1|NSF/ANSI 372|NSF/ANSI/CAN 61 Q<=1
Features & Benefits
- 1/2" NPT female inlet with external thread for optional union coupling connection 1/2" NPT female outlet 2 3/4" polished chrome plated brass adjustable wall flange and sleeve Adjustable metering cycle, 10 to 30 seconds Blank push button cap w/ vandal resistant screw Concealed straight single valve with brass body Material: Brass valve body, chrome plated metal handle, and polished chrome plated brass adjustable wall flange & sleeve Metering cartridge
Documents
Marketing Information
Concealed straight single valve with brass body, polished chrome plated brass adjustable wall flange and sleeve, 1/2" NPT female outlet, metering cartridge, blank push button cap and 1/2" NPT female inlet with unioncoupling. Certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9, and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
