CE file CE-C-0509-04-28 Approved, UL file SA13233 Listed

• Unique proven design for high pressure applications rated for R-410A Compatible with all refrigerants Maximum working pressures range from 400-650 lb/sq-in depending upon the size Deep pitch stainless steel hose and high tensile wire braid Design includes a piston stopper that provides a more positive seal and reduces leaks 100% helium and hydrogen leak tested Stainless steel grooved ferrules and crimped ferrules

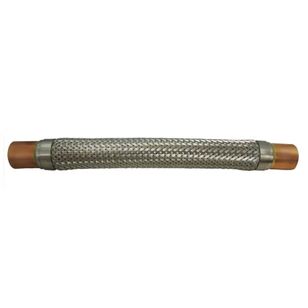

Vibration absorbers are designed for installation in the suction and discharge lines of air conditioning, heat pump and refrigeration systems to dampen the transmission of compressor induced vibration through the system piping. Each vibration absorber is pressure tested then carefully vacuum tested using a highly sensitive helium mass spectrometer leak detection device. The absorbers are cleaned, dehydrated, sealed in plastic wrap and individually boxed after final inspection to maintain cleanliness and dryness prior to installation. Available in sizes from 1/4 in OD through 2-1/8 in OD.
