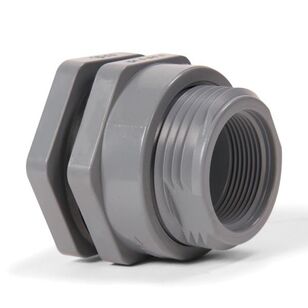

HAYWARD® BFA Series BFA1015CES Bulkhead Fitting With EPDM Standard Flange Gasket, 1-1/2 in Socket x 1-1/2 in Threaded
HAYWARD® BFA Series BFA1015CES Bulkhead Fitting With EPDM Standard Flange Gasket, 1-1/2 in Socket x 1-1/2 in Threaded
HAYWARD® Bulkhead Fitting With EPDM Standard Flange Gasket, Bulkhead Fitting Fitting, 1-1/2 in Connection Size 1, Connection Type 1: Socket, 1-1/2 in Connection Size 2, Connection Type 2: Threaded, Socket|Threaded Connection, PVC, Material Construction: PVC, 4 in L x 3-1/4 in H, 150 psi Maximum Operating Pressure, 70 deg F Operating Temperature, Additional Information: Long Pattern, Standard Flange
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHAYWARD®
Additional InformationLong Pattern, Standard Flange
Connection Size 11-1/2
Connection Size 21-1/2
Connection TypeSocket|Threaded
Connection Type 1Socket
Connection Type 2Threaded
Dimensions4 " L x 3-1/4 " H
Fitting TypeBulkhead Fitting
IndustryLeisure
MaterialPVC
Material ConstructionPVC
Maximum Operating Pressure150
Operating Temperature70
SeriesBFA Series
Additional Information
ASTM D1784|NSF/ANSI 372|NSF/ANSI 61
Features & Benefits
- Extra long design for thick tank walls Left-hand threads Hex body for one person installation Full buttress threads
Documents
Marketing Information
All BFA Series thermoplastic bulkhead fittings shall be manufactured from PVC type 1, grade 1 (ASTM D1784, cell classification 12454), CPVC (ASTM D1784, cell classification 23447) or natural polypropylene (ASTM D4101, cell classification 85580). The gasket shall be EPDM or FPM for chemical service required. The valve body shall contain left handed, buttress threads. Both the body flange and nut shall have hexagon shaped outside-diameters to allow proper tool gripping during installation. The body flange shall be available as a standard size and large size (to provide better support for external equipment, ie shutoff valve). Connection configurations for PVC and CPVC bodies shall include socket x socket (solvent weld), socket x threaded or threaded x threaded. PPL bodies shall be threaded x threaded connection only. The bulkhead fittings shall be available from 1/2 to 6 in sizes and shall be pressure-rated for 150 psi at 70 deg F non-shock. All thermoplastic bulkhead fittings shall carry a three years global warranty, shall be manufactured by HAYWARD® flow control and in the USA.
HAYWARD® BFA Series BFA1015CES Bulkhead Fitting With EPDM Standard Flange Gasket, 1-1/2 in Socket x 1-1/2 in Threaded
BrandHAYWARD®
MFG #BFA1015CES
Keller #1445915
My Part ##
Last Ordered#
Call for Price / ea
