FPPI KV7068 4 DI FLG OSY RW GATE VLV 1/2TAP 200PSI TMPRSWTCH ULFM
FPPI KV7068 4 DI FLG OSY RW GATE VLV 1/2TAP 200PSI TMPRSWTCH ULFM

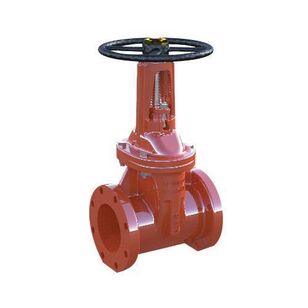

Anvil® Kennedy Valve Gate Valve, Outside Stem and Yoke Resilient Wedge, Series: KV7068, 4 in Nominal, Flange End Style, 200 psi Pressure, 125 lb Pressure Class, 9 in Inlet to Outlet Length, 22-3/4 in Top to Inlet Center, Ductile Iron Body, Stainless Steel Trim, Buna-N Softgoods
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,090.28 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandKENNEDY VALVE
Body MaterialDuctile Iron
End StyleFlange
IndustryFire Protection
Inlet to Outlet Length9"
Nominal Size4"
Pressure Class125 lbs.
Pressure Rating200
SeriesKV7068
Softgoods MaterialBuna-N
Top to Inlet Center22-3/4"
Trim MaterialStainless Steel
TypeOutside Stem and Yoke Resilient Wedge
Additional Information
AIS Compliant|ASME Class 125|ASTM A126/A536 Grade 65-45-12/70-50-5/B36/B584/D200/F593/F594/F593C|AWWA C515|Buy American Act Compliant|cULus Listed|FM Approved|NSF Certified|SAE J429 Grade 2|UL Listed
Features & Benefits
- All OS&Y valves are manufactured with pre-grooved stems to accommodate tamper switches furnished by others Stainless steel stem Buna-N O-ring
Marketing Information
Kennedy Valve series 7000, UL/FM, AWWA C515, resilient wedge gate valves are designed for use in the fire protection industry. They are available in 200 psi for UL/FM approved use and 250 psi for water works use. Non-rising stem applications come standard with 304 stainless steel fastener system and all outside stem and yoke applications are manufactured with plated steel fasteners. Other fastener materials are available for most NRS and outside stem and yoke configurations upon request.
FPPI KV7068 4 DI FLG OSY RW GATE VLV 1/2TAP 200PSI TMPRSWTCH ULFM
BrandKENNEDY VALVE
MFG #7000360904
Keller #1446221
My Part ##
Last Ordered#
$2,090.28 / ea
