ASTM A536 Body|ASTM A536 Disc|API-609|MSS SP-67 Type 1|ABS Type Approved Cat A CFR-46|PROP65: Cancer and Reproductive Harm California Transparency in Supply Chains Act of 2010

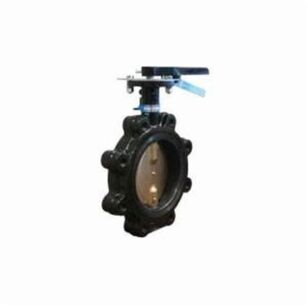

• Nickel plated ductile iron disc 200 psig non-shock Bi-directional Dead End Service to 200 psig max Bubble tight shut-off Milwaukee M series butterfly valve 2 to 12 in is approved by U.S coast guard for use in category A service as described in title 46 code of federal regulations 56.20-15 Heavy duty Design Phenolic cartridge design Low torque liner Low torque polymer bearing standard Field repairable Extended neck body Low profile disc Blow-out proof disc Bi-directional shut-off Vacuum rating to 29 in of mercury Note - the wetted surface of this product (in any material combination) contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight Buna-N liner/stem seal

Milwaukee Valve offers butterfly valves for all applications. Our high performance butterfly valves are available in sizes ranging from 2-1/2 to 24 in for class 150 ratings, and 2-1/2 to 16 in for class 300. Dependable and durable service is assured with one-piece stem and stainless steel backed reinforced PFTE bearings. Our rubber-lined butterfly valves are resilient. Seated wafer and full-lug body styles are available in sizes 2 to 48 in . Double dead end service is available from 2 to 12 in. Dead end service is available up to 24 in . All iron butterfly valves have phenolic-reinforced liners and 416 SS blowout proof stems. Liner materials include EPDM, Buna-N, FKM, Hypalon, and FDA Neoprene. Disc materials include aluminum bronze, DINP, 316 SS, epoxy, and nylon coated. Operators include 10-position lever (locking standard), gear operators, and stem extensions. All Milwaukee butterfly valves can be easily automated with pneumatic or electric actuators.
