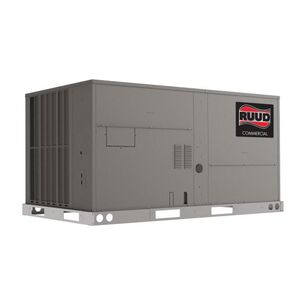

RUUD® Renaissance™ Eclipse Series RHPCYB048ACT000AAAA0 Packaged Heat Pump, 4 ton Nominal, 45518 Btu/hr Heating, 25 A
RUUD® Renaissance™ Eclipse Series RHPCYB048ACT000AAAA0 Packaged Heat Pump, 4 ton Nominal, 45518 Btu/hr Heating, 25 A
RUUD® Packaged Heat Pump, Classic® Series, 4 ton Nominal Capacity, 48000 Btu/hr Cooling BTU Rating, 45518 Btu/hr Heating BTU Rating, 208-230 V Voltage Rating, 25 A Amperage Rating, 3/4 hp Indoor, 1/2 hp Outdoor HP Rating, 60 Hz Frequency Rating, 3 ph Phase, 1050 rpm Indoor, 1075 rpm Outdoor Rotational Speed, Scroll Compressor Type, 1600 cfm Rating, 13.4 SEER Rating, 6.7 HSPF Rating, 10.6 EER Rating, Horizontal Sideflow, Vertical Downflow Configuration, Connection Type: NPT, 3/4 in Connection, R-454B Refrigerant Type, 1 Number of Stages, 30 to 35 A Fuse Rating, 86 dB Sound Level, Direct Drive Type, 1-Row 7.13 sq-ft Indoor, 1-Row 15.52 sq-ft Outdoor Coil Rating, 20 FPI Indoor, 16 FPI Outdoor Fins per Inch, (4) 2 x 16 x 16 in Filter Size, Steel, Galvanized, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D Dimensions, Standard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency, CoreCommand™ (Non-Communicating) Control Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17,920.59 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationStandard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency, CoreCommand (Non-Communicating) Control
Amperage Rating25
CFM Rating1600
Coil Rating1-Row 7.13 sq-' Indoor, 1-Row 15.52 sq-' Outdoor
Compressor TypeScroll
ConfigurationHorizontal Sideflow, Vertical Downflow
Connection Size3/4
Connection TypeNPT
Cooling BTU Rating48000
Dimensions41-3/8 " H x 79-1/4 " W x 46-3/4 " D
Drive TypeDirect
EER Rating10.6
Filter Size(4) 2 x 16 x 16 "
FinishGalvanized
Fins per Inch20 FPI Indoor, 16 FPI Outdoor
Frequency Rating60
Fuse Rating30 to 35
Heating BTU Rating45518
HP Rating3/4 hp Indoor, 1/2 hp Outdoor
HSPF Rating6.7
IndustryHVAC
MaterialSteel
Nominal Capacity4
Number of Stages1
Phase3
Refrigerant TypeR-454B
Rotational Speed1050 rpm Indoor, 1075 rpm Outdoor
SEER Rating13.4
SeriesClassic Series
Sound Level86
Voltage Rating208-230
Additional Information
AHRI Certified|ASHRAE 90.1|cULus Listed
Features & Benefits
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance PlusOne® SmartShield™ with patented microchannel defrost system Field convertible airflow (downflow and horizontal) PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet® Available power options: 208-230V / 1 phase / 60 Hz, 208-230V / 3 phase / 60 Hz, 460V / 3 phase / 60 Hz Limited Warranty (Commercial Applications): Parts - 1 Year, Compressor - 5 Years. Additional extended warranty packages available through ProtectionPlus® All units are factory run tested and shipped with R-454B refrigerant charge
Marketing Information
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.
RUUD® Renaissance™ Eclipse Series RHPCYB048ACT000AAAA0 Packaged Heat Pump, 4 ton Nominal, 45518 Btu/hr Heating, 25 A
BrandRheem®
MFG #RHPCYB048ACT000AAAA0
