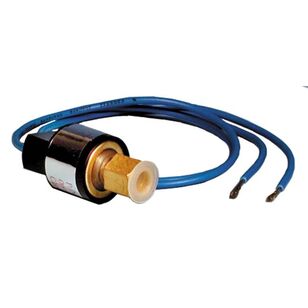

Supco® SLP Series SLP3560 Low Pressure Switch, 24/120/240 VAC, SPST, Stainless Steel

Name: Supco® SLP Series SLP3560 Low Pressure Switch, 24/120/240 VAC, SPST, Stainless Steel
Brand: Supco®
SKU: 1449054
Price: 38.35 USD
Availability: OutOfStock

Supco®

Supco® SLP Series SLP3560 Low Pressure Switch, 24/120/240 VAC, SPST, Stainless Steel

MFG #SLP3560

Item #1449054

Mfr. Part #SLP3560

UPC #68715219589

Supco® Low Pressure Switch, SLP Series, 10 A at 12 to 28 VAC/VDC, 5 A at 48 VAC/VDC, 5.8 A at 110 to 120 VAC/VDC, 2.9 A at 208 to 240 VAC/VDC Rated Load, 36 A Locked Rotor, 24/120/240 VAC, 50/60 Hz, 1/4 in SAE Female Flared with Valve Core Depressor, 18 AWG 18 in Lead Wire Connection, Snap Switching Action, Contact Configuration: SPST, 35 lb/sq-in Open, 60 lb/sq-in Close, 0 - 600 lb/sq-in Operating, 5000 lb/sq-in Burst, Direct Mounting, Stainless Steel, -31 to 248 deg F Ambient, 60 to 250 deg F Fluid

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$38.35 / ea

Out of Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandSupco®

Amperage Rating10 A at 12 to 28 VAC/VDC, 5 A at 48 VAC/VDC, 5.8 A at 110 to 120 VAC/VDC, 2.9 A at 208 to 240 VAC/VDC Rated Load, 36 A Locked Rotor

Connection Type1/4 " SAE Female Flared with Valve Core Depressor, 18 AWG 18 " Lead Wire

Contact ConfigurationSPST

Frequency Rating50/60

IndustryHVAC

MaterialStainless Steel

Mounting TypeDirect

Pressure Rating35 lb/sq-" Open, 60 lb/sq-" Close, 0 - 600 lb/sq-" Operating, 5000 lb/sq-" Burst

SeriesSLP Series

Switching ActionSnap

Temperature Rating-31 to 248 deg F Ambient, 60 to 250 deg F Fluid

Voltage Rating24/120/240

Shipping Dimensions (L x W x H)5.25" x 3.25" x 1.5"
