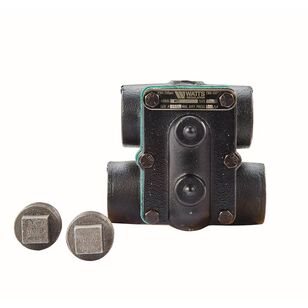

WATTS® WFT Series WFT-15 37108 Steam Trap, NPT, 15 lb/sq-in Maximum, 125 lb/sq-in Maximum Allowable
WATTS® WFT Series WFT-15 37108 Steam Trap, NPT, 15 lb/sq-in Maximum, 125 lb/sq-in Maximum Allowable
WATTS® Steam Trap, WFT Series, Model: WFT-15, NPT Connection, 15 lb/sq-in Maximum, 125 lb/sq-in Maximum Allowable, 353 deg F at 125 lb/sq-in, Cast Iron, Material Standard: ASTM A-126 Class B, 9-13/16 in W x 4-15/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,780.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Connection TypeNPT
Dimensions9-13/16 " W x 4-15/16 " D
IndustryPlumbing
MaterialCast Iron
Material StandardASTM A-126 Class B
ModelWFT-15
Pressure Rating15 lb/sq-" Maximum, 125 lb/sq-" Maximum Allowable
SeriesWFT Series
Temperature Rating353 deg F at 125 lb/sq-"
Shipping Dimensions (L x W x H)11.75" x 9.75" x 6.38"
Additional Information
ISO 9001:2008 Certified
Features & Benefits
- Series WFT F and T steam traps are designed to provide continuous air venting and separate condensate draining with maximum efficiency and service Series WFT traps can also be serviced without disturbing system piping 4-possible hook-up combinations, combined with similar piping dimensions to other major manufacturers, make this the universal replacement trap All stainless steel internal components protect against erosion and corrosion Balanced pressure thermostatic element Extra-long life and dependable service Water hammer-resistant Can be serviced without disturbing system piping Type 440C stainless steel valve head Type 416 stainless steel valve seat and gasket Type 302 stainless steel float Stainless steel bracket and lever assembly, draining plug Balanced pressure stainless steel bellows and valve thermostatic air vent Type 316 stainless steel air vent seat Grade 5 carbon steel cover bolts Non-asbestos cover gasket 1/2 in orifice
Marketing Information
This 2 inch float and thermostatic steam trap with 0.625 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping. Operating pressure is 15 psi.
