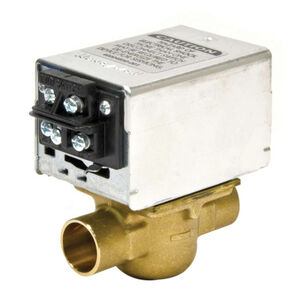

Honeywell 1000 Series V8043F1093/U Motorized Zone Valve, 3/4 in, Sweat, 8 Cv, Brass
Honeywell 1000 Series V8043F1093/U Motorized Zone Valve, 3/4 in, Sweat, 8 Cv, Brass
Honeywell Motorized Zone Valve, 1000 Series, 3/4 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 2-Position, 125 lbf/sq-in, 8 Cv Flow Coefficient (Cv), Stainless Steel Stem, Buna-N Trim, EPDM Packing, Buna-N Disc, Brass Seat, EPDM Seal, Brass, On-Off Actuator, 7.7 VA Power Consumption, Hot or Chilled Water Service, Normally Open, Normally Closed, 0.32 A, 24 VAC, 125 deg F, 4 in H x 3-1/2 in W x 2-3/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$359.51Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Actuator TypeOn-Off
Amperage Rating0.32
ConfigurationNormally Open, Normally Closed
Connection TypeSweat
Dimensions4 " H x 3-1/2 " W x 2-3/8 " D
Disc MaterialBuna-N
Flow Coefficient (Cv)8
MaterialBrass
Nominal Size3/4
Number of Ways/Position2-Ways, 2-Position
Packing MaterialEPDM
Power Consumption7.7
Pressure Rating125
Seal MaterialEPDM
Seat MaterialBrass
Series1000 Series
Service TypeHot or Chilled Water
Stem MaterialStainless Steel
Temperature Rating125
Trim MaterialBuna-N
Voltage Rating24
Additional Information
UL Listed, file MH11826
Features & Benefits
- Two way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water Manual opener for valve operation on power failure, valve returns to automatic position when power is restored All model may be installed without disassembling the valve Compact construction for easy installation Complete power head may be removed or replaced without breaking plumbing line connections or draining the system Actuator motor may be replaced without removing the valve body or draining the system The valve can be mounted in any position on a vertical line Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water 15 s nominal open timing Screw terminal block electric connection Spring return to close valve action No SPST auxiliary end switch 50 VA pilot-duty at 24 V, 4.4 a running with 26.4 A inrush at 120 V end switch rating Buna-N (NBR) rubber plug Brass case, sector gears, stainless steel cover actuator
Honeywell 1000 Series V8043F1093/U Motorized Zone Valve, 3/4 in, Sweat, 8 Cv, Brass
BrandHoneywell
MFG #V8043F1093/U
Keller #145044
