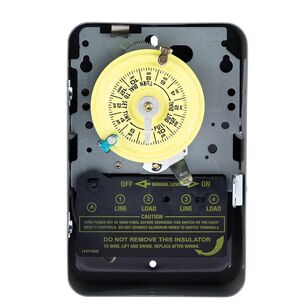

Intermatic® T100 Series T103 Time Switch, 120 VAC, 40 A, 60 Hz, 24 hr Timing, DPST, Steel
Intermatic® T100 Series T103 Time Switch, 120 VAC, 40 A, 60 Hz, 24 hr Timing, DPST, Steel
Intermatic® Time Switch, Series: T100 Series, 120 VAC, 40 A, 60 Hz, 2 hp, 3W, 5 hp, DPST, 24 hr, Switch Rating: 16 A at 277 VAC Ballast, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten, Pilot Duty: 1000 VA, 14 to 8 AWG Wire, NEMA 1, Steel, -40 to 130 deg F, 200 mm H x 130.2 mm W x 87.3 mm D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandIntermatic®
Amperage Rating40
Contact ConfigurationDPST
Dimensions200 mm H x 130.2 mm W x 87.3 mm D
Enclosure TypeNEMA 1
Frequency Rating60
IndustryLeisure
MaterialSteel
Pilot Duty Rating1000
Power Rating2 hp, 3W, 5 hp
SeriesT100 Series
Switch Rating16 A at 277 VAC Ballast, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten
Temperature Rating-40 to 130
Timing Range24
Voltage Rating120
Wire Size14 to 8
Shipping Dimensions (L x W x H)5.5" x 3.5" x 8.25"
Additional Information
C/US CSA Certified, C/US UL Listed
Features & Benefits
- It can stand the test of time These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 on/off operations per day A manual override switch provides added convenience One on and one off tripper included 12 maximum on/off operations 125 V clock motor Combination 1/2 - 3/4 in nominal knockouts, (1) on side and (2) on bottom 1 hr minimum on/off times
