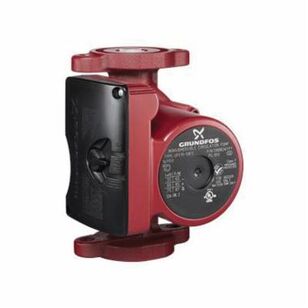

Grundfos Small Stator UP Series UPS 15-58 FC 59896341 Circulator Pump, 0 to 17 gpm, 87 W, 115 V, 0.55/0.66/0.75 A, 60 Hz

Name: Grundfos Small Stator UP Series UPS 15-58 FC 59896341 Circulator Pump, 0 to 17 gpm, 87 W, 115 V, 0.55/0.66/0.75 A, 60 Hz
Brand: Grundfos
SKU: 145057
Price: 196 USD
Availability: InStock

Grundfos

Grundfos Small Stator UP Series UPS 15-58 FC 59896341 Circulator Pump, 0 to 17 gpm, 87 W, 115 V, 0.55/0.66/0.75 A, 60 Hz

MFG #59896341

Item #145057

Mfr. Part #59896341

UPC #5700395855203

Grundfos Circulator Pump, Small Stator UP Series, Model: UPS 15-58 FC, 0 to 17 gpm Flow Rate, 19 ft Maximum Head, 87 W, 115 V, 0.55/0.66/0.75 A, 60 Hz, 145 psi Maximum Pressure, 2450 rpm Motor Speed Rating, 1/25 hp, 1/2 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, 104 deg F Ambient, 230 deg F Liquid, Iron, 6-1/2 in H x 5-1/4 in W, Additional Information: PES Impeller Material

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$196.00 / ea

In Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandGrundfos

Additional InformationPES Impeller Material

Amperage Rating0.55/0.66/0.75

Connection Size1/2

Connection TypeFlanged

Dimensions6-1/2 " H x 5-1/4 " W

Flow Rate0 to 17

Frequency Rating60

HP Rating1/25

MaterialIron

Maximum Head19

Maximum Pressure145

ModelUPS 15-58 FC

Motor Speed Rating2450

Number of Poles2

Phase1

Power Rating87

SeriesSmall Stator UP Series

Temperature Rating104 deg F Ambient, 230 deg F Liquid

Voltage Rating115

Grundfos Small Stator UP Series UPS 15-58 FC 59896341 Circulator Pump, 0 to 17 gpm, 87 W, 115 V, 0.55/0.66/0.75 A, 60 Hz
