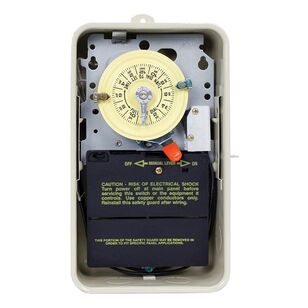

24-Hour 208-277V Mechanical Time Switch, DPST, Pool Heater Protection, Type 3R Metal Enclosure
24-Hour 208-277V Mechanical Time Switch, DPST, Pool Heater Protection, Type 3R Metal Enclosure
Heavy-duty mechanical time switches control a single load
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$233.37Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth3.63"
Height10.13"
IndustryLeisure
ItemApplicationCompatibilities_enLED
ItemElectronicBallastLoadRatings_en16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC
ItemElectronicBallastLoadRatingsRanges_en16 A, 120-277 VAC
ItemEnclosureType_enOutdoor type 3R metal
ItemHeaterControlOutput_en10 A, 250 VAC MAX, 60 Hz
ItemInductiveLoadRatings_en40 A, 277 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en40 A, 120-277 VAC, 60 Hz
ItemInputVoltageRanges_en208-277 VAC, 60 Hz
ItemKnockoutDimensionsBack_en0.5 " and 0.75 " combination
ItemKnockoutDimensionsBottom_en(2) 0.5 " and 0.75 "
ItemMarket_enCommercial, Residential, Industrial
ItemMaximumOnOffOperations_en12
ItemMotorLoadRatingsRanges_en2 HP, 24 FLA at 120 VAC, 60 Hz, 5 HP, 28 FLA at 240 VAC, 60 Hz
ItemNumberOfCircuits_en1
ItemOperatingTemperatureMaxC54
ItemOperatingTemperatureMaxF130
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemOperationMode_en24 hr
ItemPilotDutyLoadRatings_en1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
ItemPilotDutyLoadRatingsRanges_en1000 VA, 120-277 VAC, 60 Hz
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn3.625
ItemProductDepthMm92.1
ItemProductHeightIn10.125
ItemProductHeightMm257.2
ItemProductWidthIn6.5
ItemProductWidthMm165.1
ItemResistiveLoadRatings_en40 A, 480 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz, 40 A, 347 VAC, 60 Hz
ItemResistiveLoadRatingsRanges_en40 A, 120-480 VAC, 60 Hz
ItemSwitchType_enDPST
ItemTungstenLoadRatings_en40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
ItemTungstenLoadRatingsRanges_en40 A, 120-277 VAC, 60 Hz
ItemWiringOption_enTerminals
ModelItt-t104r201
Width6.5"
Shipping Dimensions (L x W x H)11.75" x 7.25" x 4.25"
Additional Information
LED|cULus|cCSAus
Features & Benefits
- Highest motor load ratings in the industry 12 ON/OFF operations per day One ON and one OFF tripper included Available with pool heater protection Teeter-type terminals for multiple load connections
Documents
Marketing Information
Heavy-duty mechanical time switches control a single load
24-Hour 208-277V Mechanical Time Switch, DPST, Pool Heater Protection, Type 3R Metal Enclosure
BrandIntermatic®
MFG #T104R201
Keller #14506
