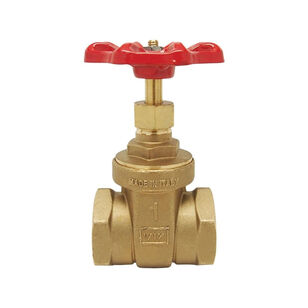

RWV® 206F Series 206F 3/4 Gate Valve, 3/4 in, FNPT, Brass, 125 WSP, 200 WOG
RWV® 206F Series 206F 3/4 Gate Valve, 3/4 in, FNPT, Brass, 125 WSP, 200 WOG
RWV® Gate Valve, 206F Series, 3/4 in Nominal, FNPT Connection, 125 WSP, 200 WOG, Gas, Oil, Water Media, Handwheel Actuator, 0.74 in Orifice, 2.12 in Inlet to Outlet Length, 3.17 in Top to Inlet Center, Brass Body, Brass Stem, Aluminum Disc, Aluminum/Brass Trim, Brass/Graphite Packing, Aluminum Handle, Graphite Softgoods, Handwheel Operator, 27.7 Cv Flow Coefficient (Cv), 32 to 160 deg F, Material Standard: ASTM B124 C37700, ASTM B85, A36, 2.36 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$41.22 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Actuator TypeHandwheel
ApplicationFor HVAC systems, oil, water distribution and irrigation applications
Body MaterialBrass
Connection TypeFNPT
Dimensions2.36 " L
Disc MaterialAluminium
Flow Coefficient (Cv)27.7
Handle MaterialAluminium
Inlet to Outlet Length2.12
Material StandardASTM B124 C37700, ASTM B85, A36
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeHandwheel
Orifice Size0.74
Packing MaterialBrass/Graphite
Pressure Rating125 WSP, 200 WOG
Series206F Series
Softgoods MaterialGraphite
Stem MaterialBrass
Temperature Rating32 to 160
Top to Inlet Center3.17
Trim MaterialAluminum/Brass
Additional Information
ASME B1.20.1|BAA Compliant
Features & Benefits
- Screw-in bonnet Non-rising stem design Solid wedge disc
