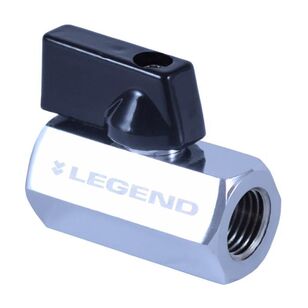

Legend Valve 101-341 Ball Valve, 1/4 in, FNPT, Brass, 400 psi
Legend Valve 101-341 Ball Valve, 1/4 in, FNPT, Brass, 400 psi
Legend Valve Ball Valve, 1/4 in Nominal, FNPT Connection, Full Port, 400 psi, Gas, Oil, Water Media, Manual Actuator, 1.64 in Inlet to Outlet Length, 1.09 in Top to Inlet Center, 1/4 in Opening, Number of Ports/Ways: 2, 1 Handles, Lever Operator, Material Standard: ASTM A36, ASTM B124 UNS C37700, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Forged Brass Disc, EPDM Packing, Brass Handle, Brass Ball, PTFE Softgoods, Finish: Chrome-Plated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$11.11Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Actuator TypeManual
Ball MaterialBrass
Body MaterialBrass
Color/FinishChrome-Plated
Connection TypeFNPT
Dimensions0.25 " L
Disc MaterialForged Brass
FinishChrome-Plated
Handle MaterialBrass
IndustryPlumbing
Inlet to Outlet Length1.64
Length0.25
Material StandardASTM A36, ASTM B124 UNS C37700
MediaGas, Oil, Water
ModelLeg-101-341
Nominal Size1/4
Number of Handles1
Number of Ports/Ways2
Opening Size1/4
Operator TypeLever
Packing MaterialEPDM
Port TypeFull
Pressure Rating400
Seal MaterialPTFE
Seat MaterialPTFE
Softgoods MaterialPTFE
Stem MaterialBrass
Top to Inlet Center1.09
Features & Benefits
- One-piece barstock-type body eliminates seam leaks that are possible with two-piece body designs. Ideal for gaugecock applications, where the lever handle does not interfere with the gauge face A low-cost, full-port ball valve replacement to other valve types; Can be installed instead of, and perform better than, gate or stop valve designs The short-pattern body types can be installed in confined piping installations, where full-pattern ball valves won't fit Available in nominal pipe thread sizes 1/8", 1/4", 3/8" and 1/2", FNPT x FNPT and MNPT x FNPT Threaded end connections conform to ANSI / ASME B1.20.1 Manufactured in an ISO 9002 accredited facility
Marketing Information
The chrome-plated full port mini ball valve features a one piece barstock-type body with female thread end. The short-pattern body type can be installed in confined piping installations.
Legend Valve 101-341 Ball Valve, 1/4 in, FNPT, Brass, 400 psi
BrandLegend Valve
MFG #101-341
Keller #1454137
My Part ##
Last Ordered#
$11.11Â /Â ea
