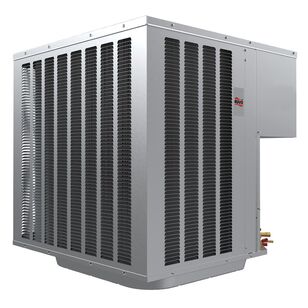

RUUD® Endeavor™ WA14AY36AJ1NA Air Conditioner, 3 ton, 33600 Btu/hr Cooling, 208-230 V, 36000 Btu/hr
RUUD® Endeavor™ WA14AY36AJ1NA Air Conditioner, 3 ton, 33600 Btu/hr Cooling, 208-230 V, 36000 Btu/hr
RUUD® Air Conditioner, Choice® Series, 3 ton Nominal Capacity, 33600 Btu/hr Cooling Capacity, 36000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 18 A Amperage Rating, 188 W Wattage, 1/6 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 2760 cfm Rating, 11.7 EER Rating, 14.3 SEER Rating, 1 Number of Stages, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 71 dB Sound Level, 2-Row Coil Rating, 30 A Fuse Rating, 13.3 sq-ft Face Area, 24 FPI Fins per Inch, Steel, 25.17 in H x 33.66 in W x 33.66 in D Dimensions, 14 RLA/75 LRA Compressor, 0.8 FLA/1.7 LRA Condenser Fan Motor Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,513.34 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information14 RLA/75 LRA Compressor, 0.8 FLA/1.7 LRA Condenser Fan Motor
Amperage Rating18
BTU Rating36000
CFM Rating2760
Coil Rating2-Row
Compressor TypeScroll
Cooling Capacity33600
Dimensions25.17 " H x 33.66 " W x 33.66 " D
EER Rating11.7
Face Area13.3
Fins per Inch24
Frequency Rating60
Fuse Rating30
HP Rating1/6
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Nominal Capacity3
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed825
SEER Rating14.3
SeriesChoice Series
Sound Level71
Suction Line Size3/4
Voltage Rating208-230
Wattage188
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- Fully Louvered Steel Cabinet: Features durable construction to add protection from yard hazards, weather corrosion Optimized 7mm Coil Design: Allows for improved airflow, heat transfer and energy consumption Easily Accessible Control Box: Ease of installation and serviceability Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems, This new requirement will result in a 78%1 lower GWP than previous-generation refrigerants - with only minimal changes to system installation, For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™2: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
RUUD® Endeavor™ WA14AY36AJ1NA Air Conditioner, 3 ton, 33600 Btu/hr Cooling, 208-230 V, 36000 Btu/hr
BrandRheem®
MFG #WA14AY36AJ1NA
Keller #1454977
My Part ##
Last Ordered#
$4,513.34 / ea
