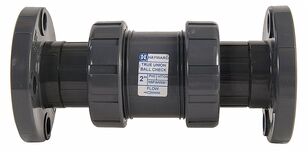

HAYWARD Check Valve: Ball, Inline Valve Body, PVC, 6 in Pipe Size, Flange x Flange, For Water Media
HAYWARD Check Valve: Ball, Inline Valve Body, PVC, 6 in Pipe Size, Flange x Flange, For Water Media
PVC (polyvinyl chloride) ball check valves are made from a corrosion- and chemical-resistant plastic resin.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
Attributes
BrandHAYWARD®
ANSI Flange ClassClass 150
Ball MaterialPVC
Body MaterialPVC
Check MechanismBall
Connection Size - Side 16 "
Connection Size - Side 26 "
Connection TypeFlange x Flange
Connection Type - Side 1Flange
Connection Type - Side 2Flange
Country Of OriginUSA
Cracking Pressure3 psi
Flow Coefficient (Cv)340
Flow Rate275 gpm
For MediaWater
Includes CounterweightNo Counterweight
IndustryLeisure
Manufacturer Warranty3 yr
Max. Pressure (CWP)150 psi
Max. Pressure (Steam)Not Rated
Media Temp. Range34 °F to 140 °F
Mounting OrientationHorizontal
NSF Certifications for Food and Drinking WaterNSF 61
Operating Temperature - Maximum140 °F
Operating Temperature - Minimum34 °F
Overall Length19.19 "
Pipe Size6 ""
Product DescriptionPVC (polyvinyl chloride) ball check valves are made from a corrosion- and chemical-resistant plastic resin.
Seal MaterialEPDM
Seat MaterialEPDM
Silent CheckStandard
StandardsASTM D1784
Vacuum Service RatingNot Rated
Valve Body StyleInline
Valve SeriesTC
HAYWARD Check Valve: Ball, Inline Valve Body, PVC, 6 in Pipe Size, Flange x Flange, For Water Media
BrandHAYWARD®
MFG #TC1600FE
Keller #1457156
