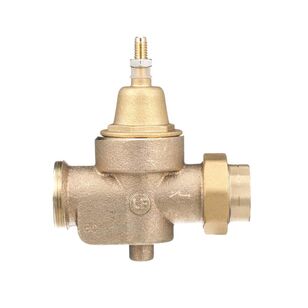

WATTS® LFN55B-M1 Series 0009539 Water Pressure Reducing Valve, 1/2 in Nominal, NPT Union x FNPT, 25 to 75 psi, Brass
WATTS® LFN55B-M1 Series 0009539 Water Pressure Reducing Valve, 1/2 in Nominal, NPT Union x FNPT, 25 to 75 psi, Brass
WATTS® Water Pressure Reducing Valve, Series: LFN55B-M1 Series, 1/2 in Nominal, NPT Union x FNPT Connection, 25 to 75 psi, Water Media, Brass Body, Thermoplastic Seat, Elastomer Disc, Bronze Trim, Lead-Free, 33 to 180 deg F, 2-1/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$445.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBrass
Connection TypeNPT Union x FNPT
Dimensions2-1/4 " W
Disc MaterialElastomer
IndustryPlumbing
Lead-FreeYes
MediaWater
Nominal Size1/2
Pressure Rating25 to 75
Seat MaterialThermoplastic
SeriesLFN55B-M1 Series
Temperature Rating33 to 180
Trim MaterialBronze
Shipping Dimensions (L x W x H)7.375" x 5.63" x 2.44"
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|IAPMO Certified|NSF Certified|UPC Listed
Features & Benefits
- Corrosion-resistant adjusting screw and sealed cage for waterworks pit installations NPT threaded union female inlet by NPT female outlet Thermoplastic seat and bronze cage Integral stainless steel strainer removable for cleaning
Documents
Marketing Information
This 1/2 inch water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, NPT threaded union female inlet by NPT female outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® LFN55B-M1 Series 0009539 Water Pressure Reducing Valve, 1/2 in Nominal, NPT Union x FNPT, 25 to 75 psi, Brass
BrandWATTS®
MFG #0009539
Keller #1459786
