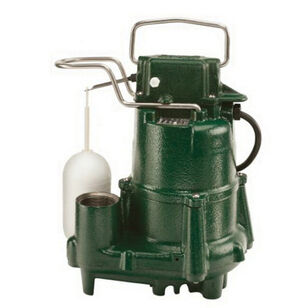

Zoeller® 98-0001 Sump Pump, 115 VAC, 9.4 A, 1/2 hp, 72 gpm, 23 ft Max Feet of Head, Cast Iron
Zoeller® 98-0001 Sump Pump, 115 VAC, 9.4 A, 1/2 hp, 72 gpm, 23 ft Max Feet of Head, Cast Iron
Zoeller® Sump Pump, Model: M98, 115 VAC, 9.4 A, 60 Hz, 1/2 hp, 1725 rpm, 72 gpm Flow Rate, 1 ph 1/2 in NPT Discharge, 9 ft Cord Length, 72 gal at 5 ft, 61 gal at 10 ft, 45 gal at 15 ft, 25 gal at 20 ft Capacity, Maximum Feet of Head: 23 ft, 130 deg F, Engineered Plastic Impeller, Cast Iron, 10-1/8 in L x 7-3/8 in W x 12-1/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$466.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandZoeller®
Amperage Rating9.4
ApplicationFor septic tanks, low pressure pipe (LPP) and enhanced flow STEP systems
Capacity72 gal at 5 ', 61 gal at 10 ', 45 gal at 15 ', 25 gal at 20 '
Cord Length9
Dimensions10-1/8 " L x 7-3/8 " W x 12-1/16 " H
Discharge Size1/2 " NPT
Flow Rate72
Frequency Rating60
HP Rating1/2
Impeller MaterialEngineered Plastic
MaterialCast Iron
Maximum Feet of Head23
ModelM98
Phase1
Speed Rating1725
Temperature Rating130
Voltage Rating115
Additional Information
C/US CSA C22.2 Number 108, UL 778
Features & Benefits
- Corrosion-resistant powder-coated epoxy finish Durable, cast iron construction Cast iron switch case, motor, pump housing and base No sheet metal parts to rust or corrode All castings are cast iron class 25-30 25000# tensile strength Stainless steel screws, guard, handle, arm and seal assembly Float operated two pole mechanical switch Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection Bearings upper and lower oil-fed cast iron Carbon and ceramic shaft seal Entire unit pressure-tested after assembly Watertight, neoprene square ring between motor and pump housing Passes 1/2 in spherical solids No screens to clog 9-1/2 in on-point 3 in off-point
