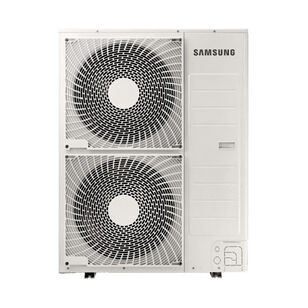

Samsung Hylex™ AC048FCU AC048FCUDCG/AA Heat Pump Outdoor Unit, 208-230 V, 33.3 A, 46000 Btu/hr Cooling, 1 ph
Samsung Hylex™ AC048FCU AC048FCUDCG/AA Heat Pump Outdoor Unit, 208-230 V, 33.3 A, 46000 Btu/hr Cooling, 1 ph
Samsung Hylex™ Heat Pump Outdoor Unit, Model: AC048FCU, 208-230 V, 33.3 A, 5.8 kW, 7.1 kW, 60 Hz, 1 ph, 48000 Btu/hr Heating, 46000 Btu/hr Cooling, 3532 cfm Heating CFM Rating, 9.5 EER Rating, 14.3 SEER, 8 HSPF, Brazed Connection, Twin BLDC Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 40 A Fuse Rating, 57 dBA Heating Sound Level, 55 dBA Cooling Sound Level, Steel, Galvanized, -13 to 75 deg F Heating Operating Temperature, -4 to 122 deg F Cooling Operating Temperature, 37 in Overall Length, 13 in Overall Width, 47-5/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,708.96 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating33.3
Compressor TypeTwin BLDC Rotary
Connection TypeBrazed
Cooling BTU Rating46000
Cooling Operating Temperature-4 to 122
Cooling Sound Level55
EER Rating9.5
FinishGalvanized
Frequency Rating60
Fuse Rating40
Heating BTU Rating48000
Heating CFM Rating3532
Heating Operating Temperature-13 to 75
Heating Sound Level57
HSPF Rating8
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelAC048FCU
Overall Height47-5/8
Overall Length37
Overall Width13
Phase1
Power Rating5.8 kW, 7.1 kW
Refrigerant TypeR-454B
SEER Rating14.3
Suction Line Size7/8
Voltage Rating208-230
Additional Information
AHRI Certified|CSA Certified
Features & Benefits
- Inverter-driven heat pump condensing unit compatible with air handling units and A-coils with a thermostatic expansion valve (conditions apply, refer to supporting technical documents for details). 100% Rated heating capacity at 14degF (-10degC) outside temperature (excluding 5-ton; refer to capacity tables in the outdoor unit technical data book for full capacity details). Soft-start compressor minimizing current inrush Base pan heater equipped as standard The system (outdoor unit with MXD-U001XN AHU Control Unit) shall provide three (3) fan speed control of the indoor unit increasing performance and dehumidification.
Samsung Hylex™ AC048FCU AC048FCUDCG/AA Heat Pump Outdoor Unit, 208-230 V, 33.3 A, 46000 Btu/hr Cooling, 1 ph
BrandSamsung
MFG #AC048FCUDCG/AA
Keller #1460862
My Part ##
Last Ordered#
$6,708.96 / ea
