HAY BYV11040A0EL000 4IN PVC BFVLV
HAY BYV11040A0EL000 4IN PVC BFVLV

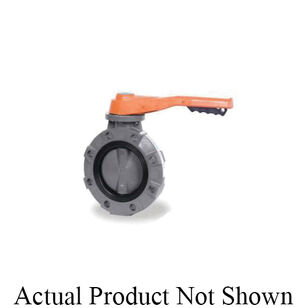

HAYWARD® Butterfly Valve, Series: BYV, 4 in Nominal, 70 deg F, Lever Handle Actuator, PVC Body, PVC Disc, 316 Stainless Steel (Stem) Stem & Pin Material, EPDM, 9.29 in H, Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHAYWARD®
Actuator TypeLever Handle
Body MaterialPVC
Dimensions9.29 " H
Disc MaterialPVC
Domestic/ImportDomestic
Nominal Size4"
SeriesBYV
Softgoods MaterialEPDM
Stem & Pin Material316 Stainless Steel (Stem)
Temperature Rating70
Additional Information
ANSI B16.10|ASME B16.5|ASTM D1784 Class 12454|DIN 2501/5752/PN10|NSF Approved
Features & Benefits
- Revolutionary hand lever with 19 lockable stop positions and 360 deg interlock External disc position and flow indication Hydro-dynamic centric disc design for increased flow performance Over-sized liner face maximizes surface contact with flanges 1-piece 316 stainless steel stem with threaded retaining gland Stem bearing and seal retainer for absolute stem positioning and sealing ISO 5211 top flange and stem drive All sizes meet ANSI B16.10/ISO 5752 narrow face-to-face dimensions 150 psi at 70 deg F non-shock EPDM liner/seal
Documents
Marketing Information
The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines.
HAY BYV11040A0EL000 4IN PVC BFVLV
BrandHAYWARD®
MFG #BYV11040A0EL000
Keller #1462314
My Part ##
Last Ordered#
Call for Price / ea
