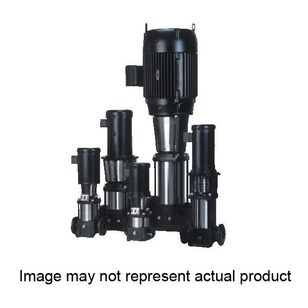

Grundfos 99968305 Centrifugal Pump, 15 hp, 3 ph, 208 to 230/460 V, 50 mm Inlet Connection, 90.3 gpm
Grundfos 99968305 Centrifugal Pump, 15 hp, 3 ph, 208 to 230/460 V, 50 mm Inlet Connection, 90.3 gpm
Grundfos Centrifugal Pump, Model: CR 15-6, 208 to 230/460 V, Amperage Rating: 38.5 to 34.8/17.4 A, 60 Hz Frequency, HP Rating: 15 hp, Phase: 3 ph, 50 mm Inlet Connection, Outlet Connection Size: 50 mm, 90.3 gpm Flow Rate, Maximum Pressure: 232.06 psi, Maximum Head: 415.4 ft, 3450 rpm Speed, Motor Type: WEG, Service Factor: 1.15, -4 to 248 deg F, Frame: 254TC, 11.8 in Overall Length, 10.1 in Overall Width
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Amperage Rating38.5 to 34.8/17.4
Flow Rate90.3
Frame254TC
Frequency Rating60
HP Rating15
IndustryPlumbing
Inlet Connection Size50
Maximum Head415.4
Maximum Pressure232.06
ModelCR 15-6
Motor TypeWEG
Outlet Connection Size50
Overall Length11.8
Overall Width10.1
Phase3
Service Factor1.15
Speed Rating3450
Temperature Rating-4 to 248
Voltage Rating208 to 230/460
Additional Information
AISI 304 Specified|ASTM A48-25B Specified|EN 1.4301/1561/GJL-200 Specified|cURus Listed
Features & Benefits
- Compact, inline design fits into small footprint Easy installation and operation with settings and internal connections done at factory Highly efficient design reduces energy consumption by up to half compared to fixed speed pumps Unique cartridge seal design can be replaced in minutes Spacer coupling allows motor to be left in place during seal replacement Remote control/fieldbus monitoring and data collection Building management system compatible User friendly controller interface with advanced features and functionality Laser welded stainless impellers promote class leading efficiency
Documents
Marketing Information
Vertical, multi-stage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron - all other wetted parts are in stainless steel. A special "Low NPSH" first stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges. The pump is fitted with a 3 ph, fan cooled asynchronous motor.
Grundfos 99968305 Centrifugal Pump, 15 hp, 3 ph, 208 to 230/460 V, 50 mm Inlet Connection, 90.3 gpm
BrandGrundfos
MFG #99968305
Keller #1464869
