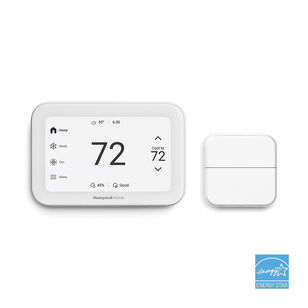

resideo ElitePRO® S1200 Series YTHX1200W5/U Thermostat Kit With Redlink 3.0, 20-30 V, 0.09 A, +/-5% RH Accuracy
resideo ElitePRO® S1200 Series YTHX1200W5/U Thermostat Kit With Redlink 3.0, 20-30 V, 0.09 A, +/-5% RH Accuracy
resideo Thermostat Kit With Redlink 3.0, S1200 Series, 20-30 V, 0.09 A, White, 5 to 90% RH Humidity Rating, +/-5% RH Accuracy, Touchscreen Display, 60 Hz, 50 to 99 deg F Cool, 40 to 90 deg F Heat Temperature Settings, 2 Heat/4 Cool Conventional or 4 Heat/2 Cool Heat Pump Stages, Junction Box, Wall Mounting, 37 to 102 deg F, 3.54 in H x 5.25 in W x 0.96 in D, Automatic or Manual Changeover
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$606.34 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Accuracy+/-5% RH
Additional InformationAutomatic or Manual Changeover
Amperage Rating0.09
ColorWhite
Dimensions3.54 " H x 5.25 " W x 0.96 " D
Display TypeTouchscreen
Frequency Rating60
Humidity Rating5 to 90% RH
Mounting TypeJunction Box, Wall
SeriesS1200 Series
Stages2 Heat/4 Cool Conventional or 4 Heat/2 Cool Heat Pump
Temperature Rating37 to 102
Temperature Settings50 to 99 deg F Cool, 40 to 90 deg F Heat
Voltage Rating20-30
Additional Information
ENERGY STAR Certified
Features & Benefits
- Streams video from First Alert® and Ring® doorbells Works with residential and commercial systems up to 4H/2C heat pump or 3H/3C conventional Control up to 2 IAQ devices with configurable outputs Monitor indoor humidity, VOC, and estimated CO2 Expandable application coverage and simplified installation with use of equipment interface module (EIM) Compatible with dual fuel, fan-coil, PTAC, and radiant systems Advanced occupancy detection helps save energy Redlink™ 3.0 technology connects wirelessly with Room Sensors (temp, humidity, & motion), EIM, and Outdoor Sensors (temp & humidity) Prioritize the comfort of the room of choice with remote Room Sensors 5-year warranty
resideo ElitePRO® S1200 Series YTHX1200W5/U Thermostat Kit With Redlink 3.0, 20-30 V, 0.09 A, +/-5% RH Accuracy
BrandHoneywell
MFG #YTHX1200W5/U
Keller #1465372
My Part ##
Last Ordered#
$606.34 / ea
