Samsung

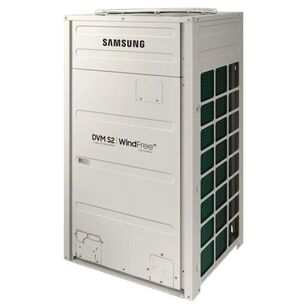

Samsung Eclipse Series AM096BXVGFR/AA Heat Recovery Condensing Unit, 8 ton, 208 - 230 V
Samsung
Samsung Eclipse Series AM096BXVGFR/AA Heat Recovery Condensing Unit, 8 ton, 208 - 230 V
MFG #AM096BXVGFR/AA
Item #1465886
Mfr. Part #AM096BXVGFR/AA
UPC #
Samsung Heat Recovery Condensing Unit, DVM S2 Series, 8 ton Nominal Capacity, 96000 Btu/hr Cooling, 108000 Btu/hr Heating BTU Rating, 208 - 230 V Voltage Rating, 60 Hz Frequency Rating, 3 ph Phase, Inverter Scroll Compressor Type, 9924 cfm Rating, 12.4 EER Rating, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 57 dBA Sound Level, 5 to 122 deg F Temperature Rating, Steel, Galvanized, 66-3/4 in H x 51 in W x 30-1/8 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$25,807.68Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
BTU Rating96000 Btu/hr Cooling, 108000 Btu/hr Heating
CFM Rating9924
Color/FinishGalvanized
Compressor TypeInverter Scroll
Dimensions66-3/4 " H x 51 " W x 30-1/8 " D
EER Rating12.4
FinishGalvanized
Frequency Rating60
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Nominal Capacity8
Phase3
Refrigerant TypeR-410A
SeriesDVM S2 Series
Sound Level57
Suction Line Size7/8
Temperature Rating5 to 122
Voltage Rating208 - 230
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- Inverter PCB cooling shall be done with liquid refrigerant and air to maintain optimal and safe operating temperatures The system shall feature advanced oil recovery cycle logic (maximum duration in cool mode: 3 minutes, maximum duration in heat mode: 6 minutes, defrost cycles lasting over 3 minutes are considered oil recovery cycles), Oil recovery operation shall not interrupt heating or cooling operation The outdoor unit shall feature optional night quiet modes to reduce outdoor unit sound (4 levels) with automatic activation or manual activation (with MIM-B14 accessory) The outdoor unit shall feature advanced intelligent defrost logic to significantly reduce defrost cycle frequency by monitoring air resistance across the condenser coil during heating operation to determine defrost operation initiation to prevent unnecessary defrost cycles The outdoor unit shall feature optional snow blowing logic to prevent snow accumulation on idle outdoor units The outdoor unit shall feature maximum current control settings to limit current (50% - 100% of design current) adjustable at outdoor unit, supported central controls, and supported indoor unit wired controllers The outdoor unit shall feature energy savings options to reduce system energy consumption when average indoor room temperatures are greater than average indoor set temperatures in heating mode or when average indoor room temperatures are lower than average indoor set temperatures in cooling mode
