HW VC4013ZZ11/U 2 POSITION (ON/OFF) 200-240V (50-60HZ
MFG #VC4013ZZ11/U
Item #1468169
Mfr. Part #VC4013ZZ11/U
UPC #085267815109

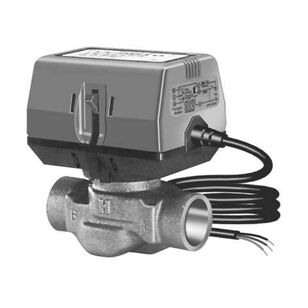

Honeywell Home Valve Actuator, Line Volt, 0.4 in, 5 to 95% RH, 6 VA, 6 sec at 60 Hz Timing, 2 Position/SPST Signal, 200 to 240 V Supply, 39 in Plenum-Rated Cable, 32 to 150 deg F Ambient, Direct Coupled Mount, Plastic Body, For Use With: VC Series, 1000 Series 2-Way and 6000 Series 3-Way Valves, Import
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$201.07Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandHoneywell
Body MaterialPlastic
Domestic/ImportImport
Electrical Connections39 " Plenum-Rated Cable
Mounting TypeDirect Coupled
Operation Range5 to 95% RH
Power Consumption6
Power Supply200 to 240
Signal Type2 Position/SPST
Stroke0.4"
Suitable For Use WithVC Series, 1000 Series 2-Way and 6000 Series 3-Way Valves
Temperature Rating32 to 150 deg F Ambient
Timing6 s at 60 Hz
TypeLine Volt
Additional Information
CSA LR1322-367|CE 89/336/ECC|73/23/EEC|UL MH11826
Features & Benefits
Minimal actuator power consumption
Quick and easy replacement of moving parts
Actuator head installation does not require draining the system
Use 2-position actuators with 1000 series 2-way and 6000 Series 3-way VC valve bodies only
All VC series actuator-valve combinations provide 60 psi close-off
-40 to 150 deg F shipping and storage temperature
Environmental, electrical or ingress protection rating: Double insulated, IP40
No internal auxiliary switch
Fail safe mode: Stays in place
Molded strain relief cable
Lever manual operation
50/60 Hz frequency
Self-alignment shaft adapter
60 psid maximum differential pressure (close-off)
Non-condensing humidity
Use with two-way or three-way valves
Quick-connect or one meter cable electrical connections available
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.
