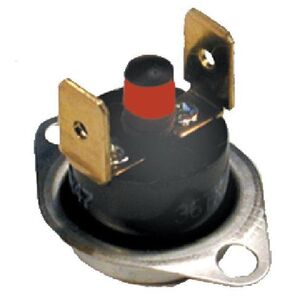

Supco® SRL350 Rollout Limit Thermostat, 120/240 VAC, SPST Switch
Supco® SRL350 Rollout Limit Thermostat, 120/240 VAC, SPST Switch
Supco® Rollout Limit Thermostat, SRL Series, 120/240 VAC Voltage Rating, 3 A at 120 VAC and 1.5 A at 240 VAC Full Load, 12 A at 120 VAC and 6 A at 240 VAC Locked Rotor Inductive, 15 A at 120 VAC and 10 A at 240 VAC Resistive Amperage Rating, SPST Switch Type, 350 deg F Cut-Out Temperature Rating, 125 V-A at 120 and 240 VAC Pilot Duty Rating, Bi-Metal
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17.71 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSupco®
Amperage Rating3 A at 120 VAC and 1.5 A at 240 VAC Full Load, 12 A at 120 VAC and 6 A at 240 VAC Locked Rotor Inductive, 15 A at 120 VAC and 10 A at 240 VAC Resistive
IndustryHVAC
MaterialBi-Metal
Pilot Duty Rating125 V-A at 120 and 240 VAC
SeriesSRL
Switch TypeSPST
Temperature Rating350 deg F Cut-Out
Voltage Rating120/240
Shipping Dimensions (L x W x H)7" x 5" x .75"
Additional Information
UL Listed, CSA Certified, RU Certified
Features & Benefits
- The SRL Series of 1/2 in bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design Offered in a broad temperature range to cover most heating applications 1/4 in vertical terminal Use 36T electrical rating 350 deg F maximum ambient temperature
Documents
Supco® SRL350 Rollout Limit Thermostat, 120/240 VAC, SPST Switch
BrandSupco®
MFG #SRL350
Keller #1468279
