ANSI 14/61G|ASTM F1970|NSF 14/61G

• Valve pressure rating 150 psi at 73 deg F water non-shock Do not use or test with compressed air or other gases Gravity ball check may be converted for air or gas venting by replacement of standard ball with natural polypropylene floater ball, then install valve upside down for fluid to lift ball into seat For foot valve, replace inlet end connection with a foot valve screen housing assembly Free oscillation of ball in guide ribs facilitates full port flow with minimum turbulence and chatter Equally effective in checking back flows from head pressure on the discharge or suction sides of pump

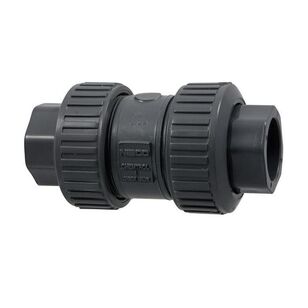

The Chemtrol® true union ball check valve stops the flow of media in one direction while allowing flow in the opposite direction, with minimum turbulence and chatter while maintaining pump prime. The valve's injection molded PVC construction with EPDM O-ring is ideal for use in chemical processing, industrial plating, chilled water distribution, chemical drainage and irrigation systems. The original Chemtrol® true union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. The valve can be easily joined with the universal socket and threaded end connections. Please refer to Chemtrol® technical data sheets, valve selection guides and catalogs for engineering and installation information. PVC SCH 80 exhibits excellent corrosion-resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol® PVC valves are lightweight, easy-to-install, maintenance-free and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® valves are backed by a 1 Year limited warranty. Because Chemtrol® is a NIBCO® brand the flow-control valves are unsurpassed in quality, performance and longevity.
