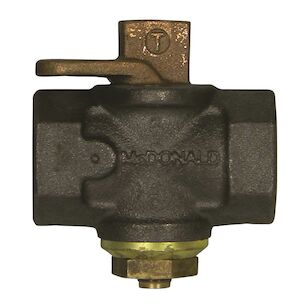

Mc.Donald® 10687B 4812-184 Gas Valve, 1-1/2 in, FNPT, Cast Iron, 175 psig
Mc.Donald® 10687B 4812-184 Gas Valve, 1-1/2 in, FNPT, Cast Iron, 175 psig
Mc.Donald® Gas Valve, Model: 10687B, 1-1/2 in Nominal Pipe, FNPT Connection, Full Port, Plug End, 175 psig, Pressure Class: 115 lb, 2.62 in Hex, Gas Media, Manual Operator, 5.43 in Top to Inlet Center, Cast Iron Body, -20 to 150 deg F, Finish: Black, 4.66 in L x 5.43 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$152.22 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandMc.Donald®
Body MaterialCast Iron
Connection TypeFNPT
Dimensions4.66 " L x 5.43 " H
Domestic/ImportDomestic
End TypePlug
FinishBlack
Hex Size2.62"
IndustryPlumbing
MediaGas
Model10687B
Nominal Pipe Size1-1/2"
Operator TypeManual
Port TypeFull
Pressure Class115
Pressure Rating175
Temperature Rating-20 to 150
Top to Inlet Center5.43
Additional Information
ANSI/ASME B1.20.1|ASME B16.33
Marketing Information
Cast iron body, brass plug manually operated 175 psig natural, manufactured or propane gas valve for use in above ground gas piping systems in ambient temperatures between -20 to 150 deg F. Iron body valves considered full port of flow. Made in USA.
Mc.Donald® 10687B 4812-184 Gas Valve, 1-1/2 in, FNPT, Cast Iron, 175 psig
BrandMc.Donald®
MFG #4812-184
Keller #1470602
