cUPC Certified|IAPMO Approved|NSF/ANSI 61

• Prevents over pressure caused by thermal expansion

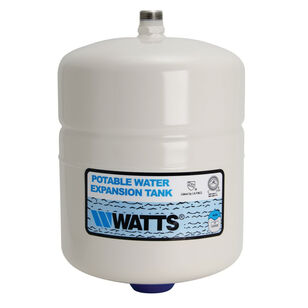

This potable water expansion tank is used on gas, oil or electric, direct fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting. This field adjustable steel tank is air pre-charged at 20 psi, volume 2.1 gal, designed with an FDA approved polypropylene liner and butyl rubber diaphragm, copper lined steel and 3/4 in male inlet connection. An expansion membrane prevents air to water contact in the tank ensuring a long system life. IAPMO listed and ANSI/NSF 61 certified. The maximum pressure is 150 psi (10 bar).
