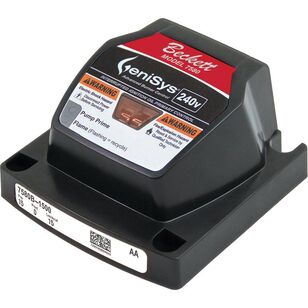

Beckett® GeniSys 7580A0000U Oil Burner Control, 208 - 240 VAC, 100 mA
Beckett® GeniSys 7580A0000U Oil Burner Control, 208 - 240 VAC, 100 mA
Beckett® GeniSys Oil Burner Control, 7580 Model, 208 - 240 VAC, 100 mA, 15 sec Lockout, -40 to 150 deg F, Less Than 20 gal/hr
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$231.55 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBeckett®
Amperage Rating100
Flow Rate<20
Lockout Time15
Model7580
Temperature Rating-40 to 150
Voltage Rating208 to 240
Features & Benefits
- Epoxy potted for moisture-resistance Compatible with most operating controls Customizable pre-time and post time (3) status lights for system monitoring and diagnostics Welded relay protection with redundant motor relays Limited reset and limited recycle Sleek, modern design Technician pump prime mode Communication ports for the contractor tool 5 - 95% RH, condensing moisture Output - 208/240 VAC, 5 full load amps (FLA), 30 locked rotor amps (LRA) motor, 208/240 VAC igniter, solenoid valve
Marketing Information
The Beckett GeniSys advanced burner control is a 240 VAC primary safety control for commercial/industrial pressure washer and other industrial applications. The GeniSys is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It has 24 VAC thermostat terminals (if applicable) compatible with mechanical and many other thermostats. It can provide interrupted or intermittent duty ignition and it has a 15 sec lockout time.
Beckett® GeniSys 7580A0000U Oil Burner Control, 208 - 240 VAC, 100 mA
BrandBeckett®
MFG #7580A0000U
Keller #1473878
