• Extended shank for water heaters with up to 3 IN of tank insulation Burn N disc to metal seating for a positive seal Manual reset button to resume heater service Snap acting trip latch closes the valve at a controlled temperature

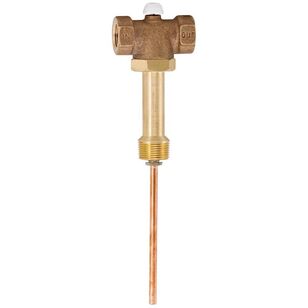

This 3/4 inch lead free automatic gas shutoff valve is used in gas water heater applications to protect against overheating the water in the domestic hot water supply heating system. It is a self contained device consisting of disc-to-metal seating, manual reset button, trip latch assembly, stainless steel spring seats, thermostat with extension tube and extended shank for up to 3 inch thick insulation. This immersion-type valve automatically shuts off the gas supply to the heater if the temperature reaches 210 degrees F (99 degrees C).
