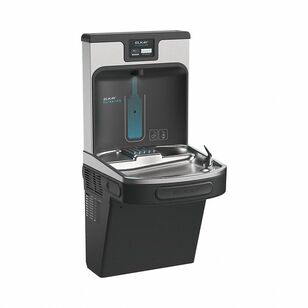

Elkay® LZS8WSMP-PF Bottle Filling Station and Single Cooler, Enhanced Filtration System, 1-Station, Wall Mounting
Elkay® LZS8WSMP-PF Bottle Filling Station and Single Cooler, Enhanced Filtration System, 1-Station, Wall Mounting
Bottle Filling Station and Single Cooler, 115 V, 5 A, 60 Hz, 370 W, Enhanced Filtration System, Activation Method: Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar, 1 Stations, Flexi-Guard® Safety Bubbler Style, 8 gph Chilling, R-134A Refrigerant, 80 deg F Water Temperature, Wall Mounting, Indoor, Stainless Steel, Midnight Black, 18-3/8 in Length, 19 in Width, 39-7/16 in Height, Additional Information: PFOA/PFOS and Lead Reduction Drop Down Wrapper
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,129.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandElkay®
Activation MethodElectronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar
Additional InformationPFOA/PFOS and Lead Reduction Drop Down Wrapper
Amperage Rating5
AntimicrobialAntimicrobial
Bi-Level Field AdjustableBi-Level Field Adjustable
Bottle Filler OperationSensor
Bubbler StyleFlexi-Guard Safety
Chiller CompatibleChiller Compatible
Chilling Capacity8
Compatible Back Panel Manufacturer Part NumberSSBFUP
Cooling Capacity8 gph
Country Of OriginBrazil
EnvironmentIndoor
FeaturesAutomatic Filter Status Reset; Energy Savings; Filtered; Green TickerHands Free; Laminar FlowReal Drain; Quick Filter Change; Visual Filter Monitor
Filter AccessBottom Panel Access
Filter Status IndicatorFilter Status Indicator Included
Filtration SystemEnhanced
FinishMidnight Black
Fountain OperationPush Button on Bubbler
Frequency Rating60
Full Load Current5 A
Height39-7/16
Housing ColorBlack
Housing FinishMidnight Black
Housing MaterialStainless Steel
IncludesBottle Filler; Filter; Water Cooler
Includes Water ChillerWater Chiller Included
Includes Water FilterWater Filter Included
Indoor/OutdoorIndoor
Length18-3/8
Manufacturer Warranty Length1 yr (Electrical Components); 5 yr (Refrigeration System)
MaterialStainless Steel
Max. Flow Rate1.1 gpm
Mounting Hole Diameter7/16 "
Mounting LocationWall Mount
Mounting TypeWall
Number of Dispensers1
Number Of Stations1
Operating Voltage115V
Overall Depth18-3/8 ""
Overall Height39-7/16 "
Overall Width19 ""
Power Consumption370 W
Power Rating370
Power SourceElectric Corded
Product DescriptionThese on-wall single drinking fountains with bottle fillers dispense water from either a built-" bottle filler or bubbler. Bubblers are sometimes referred to as a spout or nozzle.
Refrigerant TypeR-134A
RefrigerationRefrigerated
StandardsADA and ICC A117.1; ASME A112.19.3/CSA B45.4; CAN/CSA C22.2 No. 120; FCC ISED; NSF 372 (Lead Free); NSF 401; NSF 42; NSF 53; NSF 61; UL 399
Station TypeBottle Filling Dispenser; Single Fountain
Vandal ResistantNot Vandal Resistant
Voltage Rating115
Water Temperature Rating80
Width19
Additional Information
ADA Compliant|ASME A112.19.3|CSA C22.2 No. 120|CSA B45.4|FCC Approved|NSF 42/53/61/372/401|UL 399
Features & Benefits
- Drop-down wrapper provides easy access to filter from front and side of cooler for convenient and efficient filter change in under a minute Includes 71300C 2,250-gallon filter tested and certified to NSF/ANSI 42 and 53 to reduce PFOA and PFOS; prevalent PFAS chemicals, and lead, Class 1 particulates, cysts, chlorine taste and odor Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler) Hermetically sealed refrigeration system provides chilled water Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water Intuitive series of blue LED filter status lights accurately displays filter capacity, providing peace of mind to all users that system is properly filtering contaminants System automatically recognizes new filter and updates LED lights back to blue Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces Low-energy LED light encourages use, assists with filling dark bottles and illuminates in dark hallways One-box packaging so the cooler and bottle filler ship together Connected-ready; use our retrofit accessory to set up wireless monitoring, track water usage and more. Accessory sold separately
Documents
Marketing Information
This ezH2O® enhanced bottle filling station delivers a quick water bottle fill and helps sustainability efforts by minimizing use of disposable bottles. Consolidated, space-saving cooler and bottle filling design features a drop-down cooler wrapper for quick, convenient filter changes. Integrated look combines our exclusive Green Ticker™ that counts bottles saved and FillSafe™ filter recognition system that alerts to needed filter changes.
