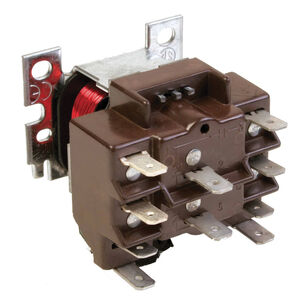

resideo R8222D1014 General Purpose Relay With DPDT Switch, 24 V Coil, 12 A
resideo R8222D1014 General Purpose Relay With DPDT Switch, 24 V Coil, 12 A
resideo General Purpose Relay, 12 V, 12 A, 24 V Coil, Double Quick-Connect Terminal, Screw Mount, 2-5/32 in Overall Width, 2-3/8 in Overall Depth, 1-7/8 in Overall Height, Additional Information: 10 A at 480 V, 20.8 A at 120/208/240/277 V Contact, 50/60 Hz Frequency, -20 to 155 deg F Temperature
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$67.18Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Additional Information10 A at 480 V, 20.8 A at 120/208/240/277 V Contact, 50/60 Hz Frequency, -20 to 155 deg F Temperature
Amperage Rating12
ApplicationFor refrigeration and air conditioning equipment, appliances, vending machines and other applications requiring general purpose switching
Coil Voltage24
Mounting TypeScrew
Overall Depth2-3/8
Overall Height1-7/8
Overall Width2-5/32
Terminal TypeDouble Quick-Connect
Voltage Rating12
Additional Information
UL File No. E59779 Guide No. NLDX2 File No. LR35066 Guide No. 184-N-13.13
Features & Benefits
- This general purpose switching relay from Resideo has a 24 VAC coil and works with low voltage applications Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation Open coil assures cooler operation Laminated magnet construction for higher efficiency Base designed for easy replacement of competitive relays
resideo R8222D1014 General Purpose Relay With DPDT Switch, 24 V Coil, 12 A
BrandHoneywell
MFG #R8222D1014/U
Keller #147728
