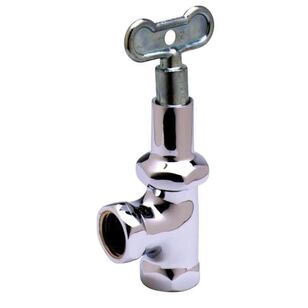

T&S B-0418 Angle Stop, 1/2 in Nominal, FNPT, Loose Key T-Handle Actuator, 16.1 gpm, 20 to 125 psi, Brass Body, Chrome
T&S B-0418 Angle Stop, 1/2 in Nominal, FNPT, Loose Key T-Handle Actuator, 16.1 gpm, 20 to 125 psi, Brass Body, Chrome
T&S Angle Stop, 1/2 in Nominal, FNPT Connection, 20 to 125 psi, 16.1 gpm Flow Rate, Brass Body, Loose Key T-Handle Actuator, Finish: Chrome, 40 to 140 deg F, 3-1/4 in H x 15/16 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$97.50Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandT&S Brass
Actuator TypeLoose Key T-Handle
Assembled Dimensions - D (In)1.438
Assembled Dimensions - H (In)3.25
Assembled Dimensions - W (In)1
Body MaterialBrass
Connection TypeFNPT
Dimensions3-1/4 " H x 15/16 " W
FinishChrome
Flow Rate16.1
Nominal Size1/2
Pressure Rating20 to 125
Temperature Rating40 to 140
Weight0.5
Additional Information
ASME A112.18.1|CSA B125.1|NSF/ANSI 372|NSF/ANSI/CAN 61 Q<=1
Features & Benefits
- 1/2" NPT female inlet 1/2" NPT female outlet Angled loose key stop Material: Chrome plated brass body Removable T-handle key
Marketing Information
Angled loose key stop, chrome plated brass body, 1/2" NPT female inlet and outlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9 and NSF 372.
