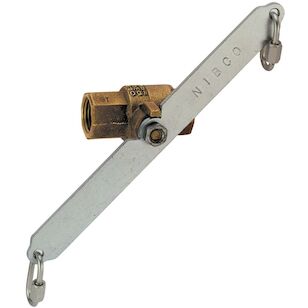

T58570HCL 1 W/HORIZ CHAIN LEVER
T58570HCL 1 W/HORIZ CHAIN LEVER
NIBCO®, 1 in Nominal, Connection Type: FIPT, Full Port, 600 psi CWP, 150 psi SWP, Quarter-Turn Horizontal Chain Lever Operator, Bronze Body, Silicon Bronze Stem, Reinforced PTFE Seal, Bronze Trim, Brass Ball, Hard Chrome, 6.7 in L x 2.1 in W x 3.4 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$178.40 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Color/FinishHard Chrome
Connection TypeFIPT
Dimensions6.7 " L x 2.1 " W x 3.4 " H
FinishHard Chrome
IndustryPlumbing
Nominal Size1
Operator TypeQuarter-Turn Horizontal Chain Lever
Port TypeFull
Pressure Rating600 psi CWP, 150 psi SWP
Seal MaterialReinforced PTFE
Stem MaterialSilicon Bronze
Trim MaterialBronze
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Full port Chrome plated brass ball, silicon bronze stem Blowout-proof stem Standard lever handle, optional NIB-SEAL pecent Threaded end connections Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-110
Documents
Marketing Information
The NIBCO pecent bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
T58570HCL 1 W/HORIZ CHAIN LEVER
BrandNIBCO®
MFG #NL95B0A
Keller #1479026
My Part ##
Last Ordered#
$178.40 / ea
