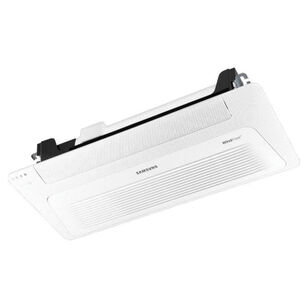

Samsung WindFree™ DVM S Series AM012FE1DCG/AA 1-Way Cassette Indoor Unit, 208-230 V, 0.31 A, 1 Phase, ABS
Samsung WindFree™ DVM S Series AM012FE1DCG/AA 1-Way Cassette Indoor Unit, 208-230 V, 0.31 A, 1 Phase, ABS
Samsung 1-Way Cassette Indoor Unit, DVM S Series, Model: AM012FE1, 208-230 V, 0.31 A, 50 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 12000 Btu/hr Cooling, 13500 Btu/hr Heating, 283 cfm, Connection Type: Flared, 1/4 in, 1/2 in Connection, R-32 Refrigerant, 15 A Fuse Rating, 37 dBA Sound Level, Ceiling Mounting, ABS, White, 38-3/16 in Overall Length, 16-1/8 in Overall Width, 5-5/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,617.92 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating0.31
BTU Rating12000 Btu/hr Cooling, 13500 Btu/hr Heating
CFM Rating283
ColorWhite
Color/FinishWhite
Connection Size1/4 ", 1/2 "
Connection TypeFlared
Frequency Rating60
Fuse Rating15
IndustryHVAC
MaterialABS
ModelAM012FE1
Mounting TypeCeiling
Number of Fan Speeds3
Overall Height5-5/16
Overall Length38-3/16
Overall Width16-1/8
Phase1
Power Rating50
Refrigerant TypeR-32
SeriesDVM S Series
Sound Level37
Voltage Rating208-230
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- Compatible with R-32 DVM S2+, DVM S+ Water, and DVM S Mini systems The indoor unit shall feature WindFree™* mode. When activated in cooling mode, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit, preventing cold air drafts on occupants. The indoor unit shall have an integral condensate pump with maximum 26-5/16" lift from bottom of the unit (21-5/16" from drain outlet) with check valve and float switch to disable unit in the event of condensate overflow. The indoor unit fascia panel shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. Insulated, HIPS chassis and fascia panel certified to UL94 V0. High-voltage terminal block temperature sensor to disable unit in the event of power connection overheating. The heat exchanger shall be mechanically boded aluminum fin to copper tube. The indoor unit shall include an R32 alarm output plug for simple notification or interlock of third-party equipment upon R32 leak detection (MIM-B14U accessory required). Three fan speed settings and auto settings Electro-static, washable filter as standard (included with fascia panel) Fascia panel shall have LED display, infrared receiver, and motorized louvers Control wiring shall be 2 X 16 AWG. The unit shall be operated via a wired remote controller model MWRWG01UN, purchased separately. Dual set temperature support when connected to supported controllers. Wired or wireless controllers must be purchased separately. External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required). External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required). Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required). External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating
Samsung WindFree™ DVM S Series AM012FE1DCG/AA 1-Way Cassette Indoor Unit, 208-230 V, 0.31 A, 1 Phase, ABS
BrandSamsung
MFG #AM012FE1DCG/AA
Keller #1480531
