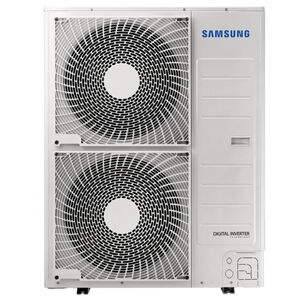

Samsung DVM S Mini Series AM060FCMDCG/AA Heat Pump Condensing Unit, 208 to 230 V, 26.5 A, 60000 Btu/hr Cooling, Steel
Samsung DVM S Mini Series AM060FCMDCG/AA Heat Pump Condensing Unit, 208 to 230 V, 26.5 A, 60000 Btu/hr Cooling, Steel
Samsung Heat Pump Condensing Unit, DVM S Mini Series, 208 to 230 V, 26.5 A, 125 W, 60 Hz, 1 ph, 66000 Btu/hr Heating, 60000 Btu/hr Cooling, 4415 cfm Heating CFM Rating, 4415 cfm Cooling CFM Rating, 12 EER Rating, 20 SEER, 10.2 HSPF, Pipe Connection, Flash Injected, Inverter Driven Scroll Compressor, R-32 Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 55 dB Heating Sound Level, 57 dB Cooling Sound Level, Steel, Galvanized/Powder-Coated, -22 to 75 deg F Heating Operating Temperature, 23 to 118 deg F Cooling Operating Temperature, 37 in Overall Length, 13 in Overall Width, 55-15/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,091.68Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating26.5
Compressor TypeFlash Injected, Inverter Driven Scroll
Connection TypePipe
Cooling BTU Rating60000
Cooling CFM Rating4415
Cooling Operating Temperature23 to 118
Cooling Sound Level57
EER Rating12
FinishGalvanized/Powder-Coated
Frequency Rating60
Heating BTU Rating66000
Heating CFM Rating4415
Heating Operating Temperature-22 to 75
Heating Sound Level55
HSPF Rating10.2
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Overall Height55-15/16
Overall Length37
Overall Width13
Phase1
Power Rating125
Refrigerant TypeR-32
SEER Rating20
SeriesDVM S Mini Series
Suction Line Size3/4
Voltage Rating208 to 230
Additional Information
AHRI Certified|CEE Certified|cETLus Listed|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- Compatible with Samsung R-32 DVM S indoor units (AM******DCG/AA) and upcoming R-32 Universal Communication Kit. Active AI control enhances operational performance: AI Low Pressure Control can improve cooling speed up to 21%; AI High Pressure Control reduces unnecessarily high pressures, improving efficiency and reducing power consumption. Auto-restart after power loss Soft-start compressor minimizing current inrush Galvanized steel with a baked-on powder coated finish for durability. The heat exchanger shall be mechanically bonded aluminum fin to copper tube. The system shall utilize low-GWP R-32 refrigerant The compressors shall be hermetically sealed, inverter driven, flash injected scroll type. The outdoor unit shall pump down the refrigerant in the event an indoor unit detects a refrigerant leak. The sequence of operations shall include closing refrigerant isolation valves at the end of the pump down process to secure as much refrigerant as possible in the outdoor unit in the event of refrigerant leakage within an indoor door unit. Refrigerant flow shall be controlled by an EEV (electronic expansion valve) throughout the system. A flat plate subcooler device will improve capacity at extreme system refrigerant pipe lengths and reduce refrigerant noise. The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak when an indoor unit refrigerant leak detector detects a leak (MIM-B14U accessories are required). Control wiring shall be 2 X 16 AWG wire. No additional interface modules/adapters are required when connecting to Samsung central control options. The outdoor unit shall have snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit. Night-time Quiet Mode: reduction of operational sound during evening hours (automatic or manual activation). Maximum Current Control configurable from 50% - 100% via outdoor unit, wired controller or central control.
Samsung DVM S Mini Series AM060FCMDCG/AA Heat Pump Condensing Unit, 208 to 230 V, 26.5 A, 60000 Btu/hr Cooling, Steel
BrandSamsung
MFG #AM060FCMDCG/AA
Keller #1480532
My Part ##
Last Ordered#
$12,091.68Â /Â ea
